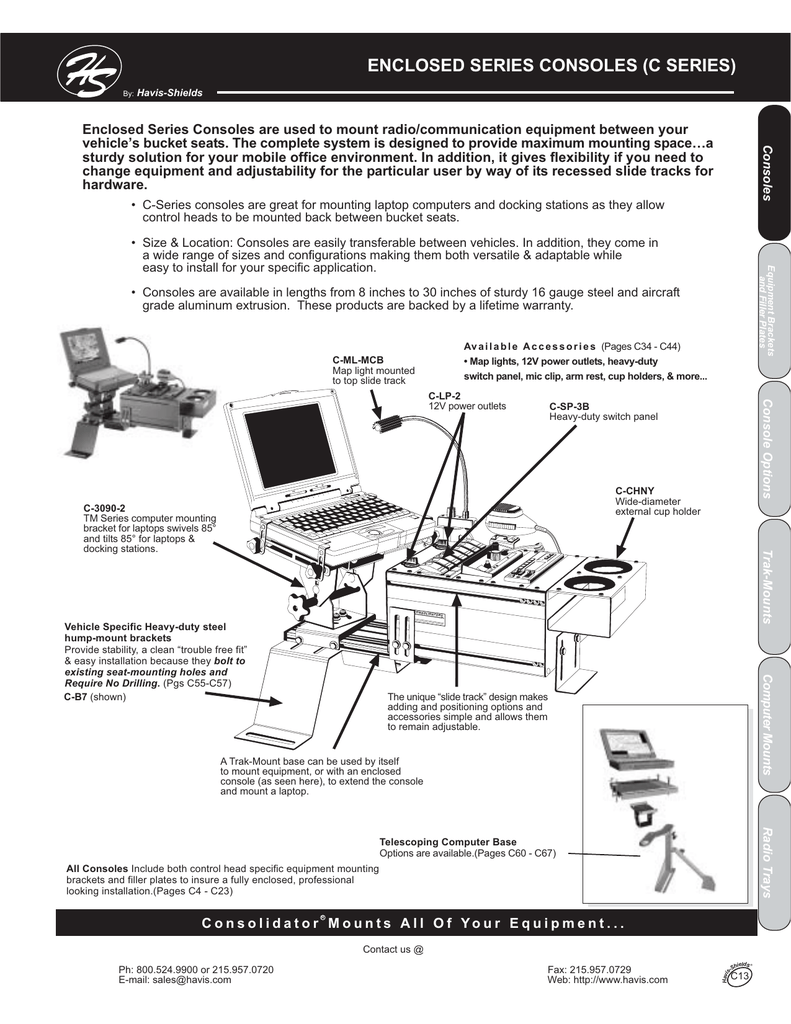

ENCLOSED SERIES CONSOLES (C SERIES)
ENCLOSED SERIES CONSOLES (C SERIES) By: Havis-Shields Consoles Enclosed Series Consoles are used to mount radio/communication equipment between your vehicles bucket seats. The complete system is designed to provide maximum mounting space a sturdy solution for your mobile office environment. In addition, it gives flexibility if you need to change equipment and adjustability for the particular user by way of its recessed slide tracks for hardware. C-Series consoles are great for mounting laptop computers and docking stations as they allow control heads to be mounted back between bucket seats. Equipment Brackets and Filler Plates Size & Location: Consoles are easily transferable between vehicles. In addition, they come in a wide range of sizes and configurations making them both versatile & adaptable while easy to install for your specific application. Consoles are available in lengths from 8 inches to 30 inches of sturdy 16 gauge steel and aircraft grade aluminum extrusion. These products are backed by a lifetime warranty. Av a i l a b l e A c c e s s o r i e s (Pages C34 - C44) C-ML-MCB Map light mounted to top slide track Map lights, 12V power outlets, heavy-duty switch panel, mic clip, arm rest, cup holders, & more... Console Options C-LP-2 12V power outlets C-SP-3B Heavy-duty switch panel C-CHNY Wide-diameter external cup holder CO NS OLI Ha DATOR ® Corporation Warminster, PA 18974 800-524 -9900 Computer Mounts Vehicle Specific Heavy-duty steel hump-mount brackets Provide stability, a clean trouble free fit & easy installation because they bolt to existing seat-mounting holes and Require No Drilling. (Pgs C55-C57) C-B7 (shown) ds Trak-Mounts C-3090-2 TM Series computer mounting bracket for laptops swivels 85° and tilts 85° for laptops & docking stations. The unique slide track design makes adding and positioning options and accessories simple and allows them to remain adjustable. A Trak-Mount base can be used by itself to mount equipment, or with an enclosed console (as seen here), to extend the console and mount a laptop. Radio Trays Telescoping Computer Base Options are available.(Pages C60 - C67) All Consoles Include both control head specific equipment mounting brackets and filler plates to insure a fully enclosed, professional looking installation.(Pages C4 - C23) C o n s o l i d a t o r M o u n ts A l l O f Yo u r E q u i p m e n t . . . R Contact us @ Fax: 215.957.0729 Web: http://www.havis.com ® hields -S Havis Ph: 800.524.9900 or 215.957.0720 E-mail: [email protected] C13 lidator so ® Con ENCLOSED SERIES CONSOLES (C SERIES) Havis-Shields By: Consoles Part Number Maximum Equipment Mounting Area Weight 8 5 lbs. 10 5 lbs. 10 5 lbs. 12 5 lbs. C-800 8 enclosed console for applications with limited space 8 9 Vehicle mounting brackets are included and are vehicle specific. See our vehicle application chart (pages 11 - 14) Includes up to (3) C-EB equipment brackets and (3) C-FP filler plates to enclose top of console (8 max) 6.375 Equipment Brackets and Filler Plates See pgs C24 - C33 for control head equipment brackets C-1000 9 10 enclosed console for applications with limited space 10 Console Options Vehicle mounting brackets are included and are vehicle specific. See our vehicle application chart (pages 11 - 14) 6.375 Includes up to (3) C-EB equipment brackets and (3) C-FP filler plates to enclose top of console (10 max) See pgs C24 - C33 for control head equipment brackets C-1000-IMP 10 enclosed console for Chevrolet Impala & Dodge Intrepid 10 Vehicle mounting brackets are included and are vehicle specific. See our vehicle application chart (pages 11 - 14) Trak-Mounts 9 6.375 Includes up to (3) C-EB equipment brackets and (3) C-FP filler plates to enclose top of console (10 max) See pgs C24 - C33 for control head equipment brackets Computer Mounts C-1200 9 12 12 enclosed console Vehicle mounting brackets are included and are vehicle specific. See our vehicle application chart (pages 11 - 14) 6.375 Includes up to (3) C-EB equipment brackets and (3) C-FP filler plates to enclose top of console (12 max) Radio Trays See pgs C24 - C33 for control head equipment brackets Contact us @ Havis ® hields -S C14 Ph: 800.524.9900 or 215.957.0720 E-mail: [email protected] Fax: 215.957.0729 Web: http://www.havis.com ® Con ENCLOSED SERIES CONSOLES (C SERIES) By: Part Number lidator so Havis-Shields Weight 12 5 lbs. 12 5 lbs. Consoles Maximum Equipment Mounting Area C-1200-IMP 9 12 enclosed console for Chevrolet Impala & Dodge Intrepid 12 Vehicle mounting brackets are included and are vehicle specific See our vehicle application chart (pages 11 - 14) 6.375 Includes up to (3) C-EB equipment brackets and (3) C-FP filler plates to enclose top of console (12 max) Equipment Brackets and Filler Plates See pgs C24 - C33 for control head equipment brackets 75 8.3 C-1200LP 12 enclosed console low-profile console 9 12 Designed to fit flush with top of seats Includes up to (3) C-EB equipment brackets and (3) C-FP filler plates to enclose top of console (12 max) See pgs C24 - C33 for control head equipment brackets C-1400 9 Console Options Vehicle mounting brackets are included and are vehicle specific See our vehicle application chart (pages 11 - 14) 4 14 enclosed console 14 6.375 Includes up to (3) C-EB equipment brackets and (3) C-FP filler plates to enclose top of console (14 max) 14 6 lbs. See pgs C24 - C33 for control head equipment brackets Trak-Mounts Vehicle mounting brackets are included and are vehicle specific See our vehicle application chart (pages 11 - 14) C-1400-IMP 14 enclosed console for Chevrolet Impala & Dodge Intrepid 14 Vehicle mounting brackets are included and are vehicle specific See our vehicle application chart (pages 11 - 14) 6.375 14 6 lbs. Includes up to (3) C-EB equipment brackets and (3) C-FP filler plates to enclose top of console (14 max) Computer Mounts See pgs C24 - C33 for control head equipment brackets 75 8.3 Radio Trays Contact us @ Ph: 800.524.9900 or 215.957.0720 E-mail: [email protected] Fax: 215.957.0729 Web: http://www.havis.com ® hields -S Havis 9 C15 lidator so ® Con ENCLOSED SERIES CONSOLES (C SERIES) By: Havis-Shields Maximum Equipment Mounting Area Consoles Part Number Weight C-1400LP 14 enclosed low-profile console 9 Designed to sit flush with top of seats 14 Vehicle mounting brackets are included and are vehicle specific See our vehicle application chart (pages 11 - 14) Equipment Brackets and Filler Plates 4 14 6 lbs. Includes up to (3) C-EB equipment brackets and (3) C-FP filler plates to enclose top of console (14 max) See pgs C24 - C33 for control head equipment brackets C-1800 18 enclosed console 9 18 Console Options Vehicle mounting brackets are included and are vehicle specific See our vehicle application chart (pages 11 - 14) 6.375 Includes up to (4) C-EB equipment brackets and (4) C-FP filler plates to enclose top of console (18 max) 18 7 lbs. 18 7 lbs. 18 7 lbs. See pgs C24 - C33 for control head equipment brackets C-1800-IMP 9 18 enclosed console for Chevrolet Impala and Dodge Intrepid 18 Trak-Mounts Vehicle mounting brackets are included and are vehicle specific See our vehicle application chart (pages 11 - 14) Includes up to (4) C-EB equipment brackets and (4) C-FP filler plates to enclose top of console (18 max) 6.375 See pgs C24 - C33 for control head equipment brackets 75 8.3 Computer Mounts C-1800LP 9 18 18 enclosed low-profile console Designed to sit flush with top of seats 4 Vehicle mounting brackets are included and are vehicle specific See our vehicle application chart (pages 11 - 14) Includes up to (4) C-EB equipment brackets and (4) C-FP filler plates to enclose top of console (18 max) Radio Trays See pgs C24 - C33 for control head equipment brackets Contact us @ Havis ® hields -S C16 Ph: 800.524.9900 or 215.957.0720 E-mail: [email protected] Fax: 215.957.0729 Web: http://www.havis.com lidator so ® Con ENCLOSED SERIES CONSOLES (C SERIES) By: Maximum Equipment Mounting Area Weight 24 18 lbs. 11 18 lbs. 30 18 lbs. 17 18 lbs. Consoles Part Number Havis-Shields LIGHT & MEDIUM TRUCK CONSOLES (SUV & FULL SIZE ONLY) C-2410 9 24 enclosed console 24 Vehicle mounting brackets are included and are vehicle specific See our vehicle application chart (pages 11 - 14) See pgs C24 - C33 for control head equipment brackets C-2411 9 Equipment Brackets and Filler Plates 10 Includes up to (4) C-EB equipment brackets and (4) C-FP filler plates to enclose top of console (24 max) 24 enclosed console 24 10 Vehicle mounting brackets are included and are vehicle specific See our vehicle application chart (pages 11 - 14) Includes up to (4) C-EB equipment brackets and (4) C-FP filler plates to enclose top of console (11 max) See pgs C24 - C33 for control head equipment brackets Console Options Includes 13 x 9 carpeted storage compartment 13 C-3010 30 enclosed console 30 Vehicle mounting brackets are included and are vehicle specific See our vehicle application chart (pages 11 - 14) Includes up to (4) C-EB equipment brackets and (4) C-FP filler plates to enclose top of console (30 max) 10 See pgs C24 - C33 for control head equipment brackets 9 30 enclosed console Includes 13 x 9 carpeted storage compartment 13 Computer Mounts C-3011 30 Trak-Mounts 9 Vehicle mounting brackets are included and are vehicle specific See our vehicle application chart (pages 11 - 14) 10 Radio Trays Includes up to (4) C-EB equipment brackets and (4) C-FP filler plates to enclose top of console (17 max) See pgs C24 - C33 for control head equipment brackets Contact us @ Fax: 215.957.0729 Web: http://www.havis.com ® hields -S Havis Ph: 800.524.9900 or 215.957.0720 E-mail: [email protected] C17 lidator so ® Con CONSOLES TRAK-MOUNT COMBO (C/TM SERIES) By: Havis-Shields Weight Consoles Part Number CONSOLES TRAK-MOUNT COMBO C-800TM C-800, 8" Console with 12" Trak Mount Extrusion & Mounting Brackets.. 8 lbs. Equipment Brackets and Filler Plates See enclosed console page C14 for dimensions & specs. Console Options C-1000TM, C-1000TM-IMP C-1000, 10" Console with 12" Trak Mount Extrusion & Mounting Brackets. 8 lbs. C-1000IMP, 10" Console with 12 Trak Mount Extrusion & Mounting Brackets for Impala & Intrepid. -IMP model housing is 8.375 wide at bottom to fit between bucket seats. 8 lbs See enclosed console page C14 for dimensions & specs. Trak-Mounts C-1000TM shown Computer Mounts C-1200TM, C-1200TM-IMP, C-1200TM-LP C-1200, 12" Console with 12" Trak Mount Extrusion & Mounting Brackets. 8 lbs. C-1200IMP, 12" Console with 12 Trak Mount Extrusion & Mounting Brackets for Impala & Intrepid. -IMP model housing is 8.375 wide at bottom to fit between bucket seats. 8 lbs. C-1200LP, 12" Low Profile Console with 12" Trak Mount Extrusion & Mounting Brackets. -LP model housing is 4 high to sit flush with top of seats. Great for mounting two -piece, remote style control heads. 8 lbs See enclosed console pages C14 - C15 for dimensions & specs. Radio Trays C-1200TM shown Contact us @ Havis ® hields -S C18 Ph: 800.524.9900 or 215.957.0720 E-mail: [email protected] Fax: 215.957.0729 Web: http://www.havis.com lidator so ® Con CONSOLES TRAK-MOUNT COMBO (C/TM SERIES) By: Havis-Shields Weight Part Number CONSOLES TRAK-MOUNT COMBO 9 lbs. C-1400IMP, 14" Console with 12 Trak Mount Extrusion & Mounting Brackets for Impala & Intrepid. -IMP model housing is 8.375 wide at bottom to fit between bucket seats. 9 lbs. C-1400LP, 14" Low Profile Console with 12" Trak Mount Extrusion & Mounting Brackets. -LP model housing is 4 high to sit flush with top of seats. Great for mounting two -piece, remote style control heads. 9 lbs. Equipment Brackets and Filler Plates C-1400, 14" Console with 12" Trak Mount Extrusion. Consoles C-1400TM, C-1400TM-IMP, C-1400TM-LP See enclosed console pages C15 - C16 for dimensions & specs. C-1400TM shown C-1800TM, C-1800TM-IMP, C-1800TM-LP 10 lbs. C-1800IMP, 18" Console with 12 Trak Mount Extrusion & Mounting Brackets for Impala & Intrepid. -IMP model housing is 8.375 wide at bottom to fit between bucket seats. 10 lbs. C-1800LP, 18" Low Profile Console with 12" Trak Mount Extrusion & Mounting Brackets. -LP model housing is 4 high to sit flush with top of seats. Great for mounting two -piece, remote style control heads. 10 lbs. Console Options C-1800, 18" Console with 12" Trak Mount Extrusion. See enclosed console page C16 for dimensions & specs. Trak-Mounts C-1800TM shown 9 Bracket Slide Rail C-3083-1 Computer Mounts 9 Bracket Slide Rail Allows computer mounts to be mounted over top of all 9 consoles See computer mounts on pages C52-C54 Radio Trays Contact us @ Fax: 215.957.0729 Web: http://www.havis.com ® hields -S Havis Ph: 800.524.9900 or 215.957.0720 E-mail: [email protected] C19
