SFF-8636 Rev 2.8.2
SFF specifications are available at http://www.snia.org/sff/specifications
or ftp://ftp.seagate.com/sff
SFF Committee

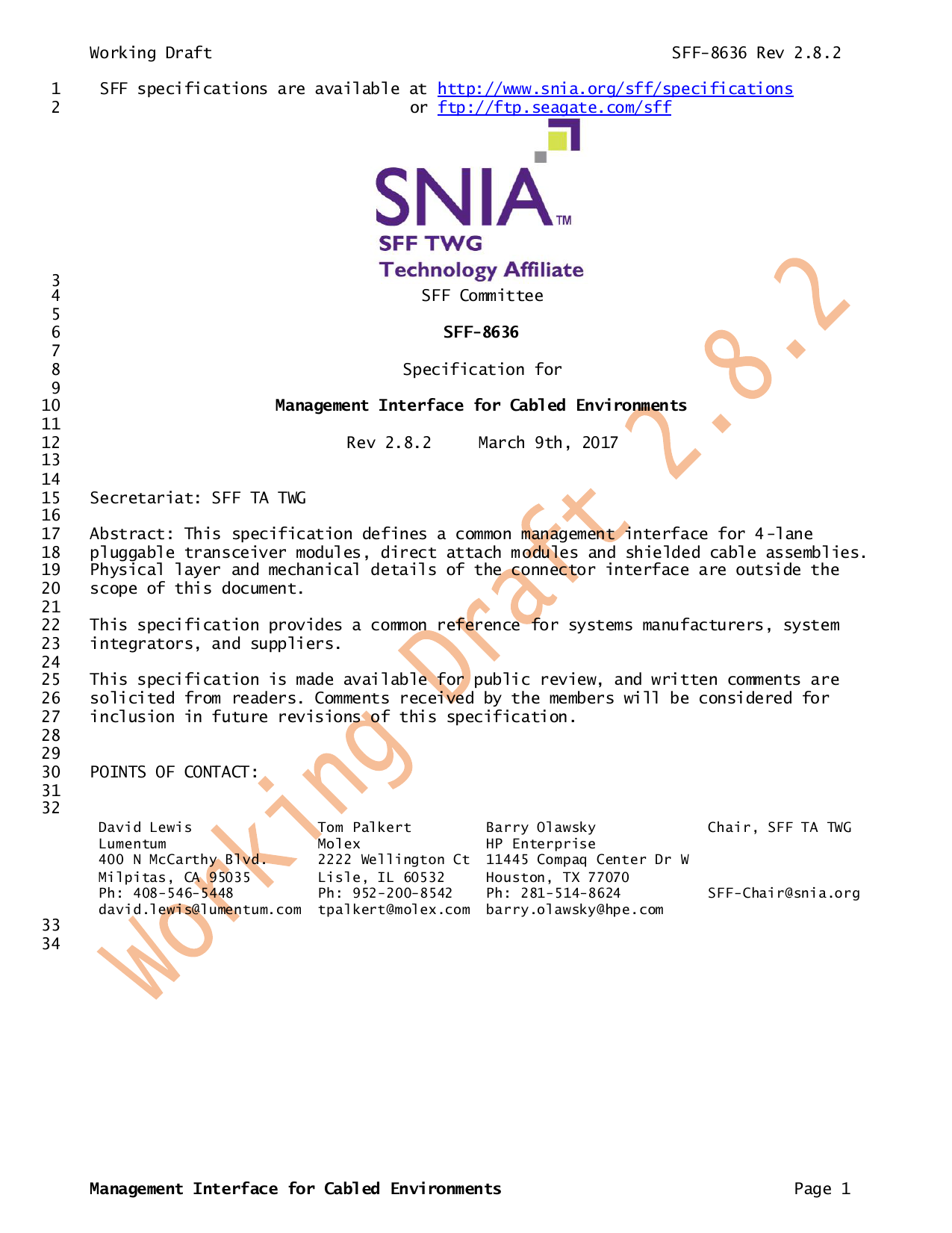

SFF-8636
Specification for
Management Interface for Cabled Environments
Rev 2.8.2
March 9th, 2017
Secretariat: SFF TA TWG
Abstract: This specification defines a common management interface for 4 -lane
pluggable transceiver modules, direct attach modules and shielded cable assemblies.
Physical layer and mechanical details of the connector interface are outside the
scope of this document.
This specification provides a common reference for systems manufacturers, system
integrators, and suppliers.
This specification is made available for public review, and written comments are
solicited from readers. Comments received by the members will be considered for
inclusion in future revisions of this specification.
POINTS OF CONTACT:
David Lewis
Lumentum
400 N McCarthy Blvd.
Milpitas, CA 95035
Ph: 408-546-5448
[email protected]
Tom Palkert
Molex
2222 Wellington Ct
Lisle, IL 60532
Ph: 952-200-8542
[email protected]
Barry Olawsky
HP Enterprise
11445 Compaq Center Dr W
Houston, TX 77070
Ph: 281-514-8624
[email protected]
Chair, SFF TA TWG
[email protected]
Page 1
Working Draft
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
SFF-8636 Rev 2.8.2
EXPRESSION OF SUPPORT BY MANUFACTURERS
The following member companies of the SFF TA TWG voted in favor of this industry
specification.
The following member companies of the SFF TA TWG voted against this industry
specification.
The following member companies of the SFF TA TWG voted to abstain on this industry
specification.
The user's attention is called to the possibility that implementation to this
Specification may require use of an invention covered by patent rights. By
distribution of this specification, no position is taken with respect to the
validity of a claim or claims or of any patent rights in connection therewith. SNIA
SFF TWG members which advise that a patent exists are required to grant a license
on reasonable and non-discriminatory terms and conditions to applicants desiring to
obtain such a license.
Change History:
Rev 0.9
- Clarified wording in 6.2.2
Rev 1.0
- Added missing reservation entries (Bytes 133, 134, and 220). Modified bit entry
labels (Bytes 93 and 136).
Rev 1.2
- Editorial: Formatted Word controls to improve pagination breaks and comply with
style guide.
Rev 1.3
- Table 20 Identifier Values and Table 24 Encoding Values modified to point to SFF8024 as the reference for later values and codes.
