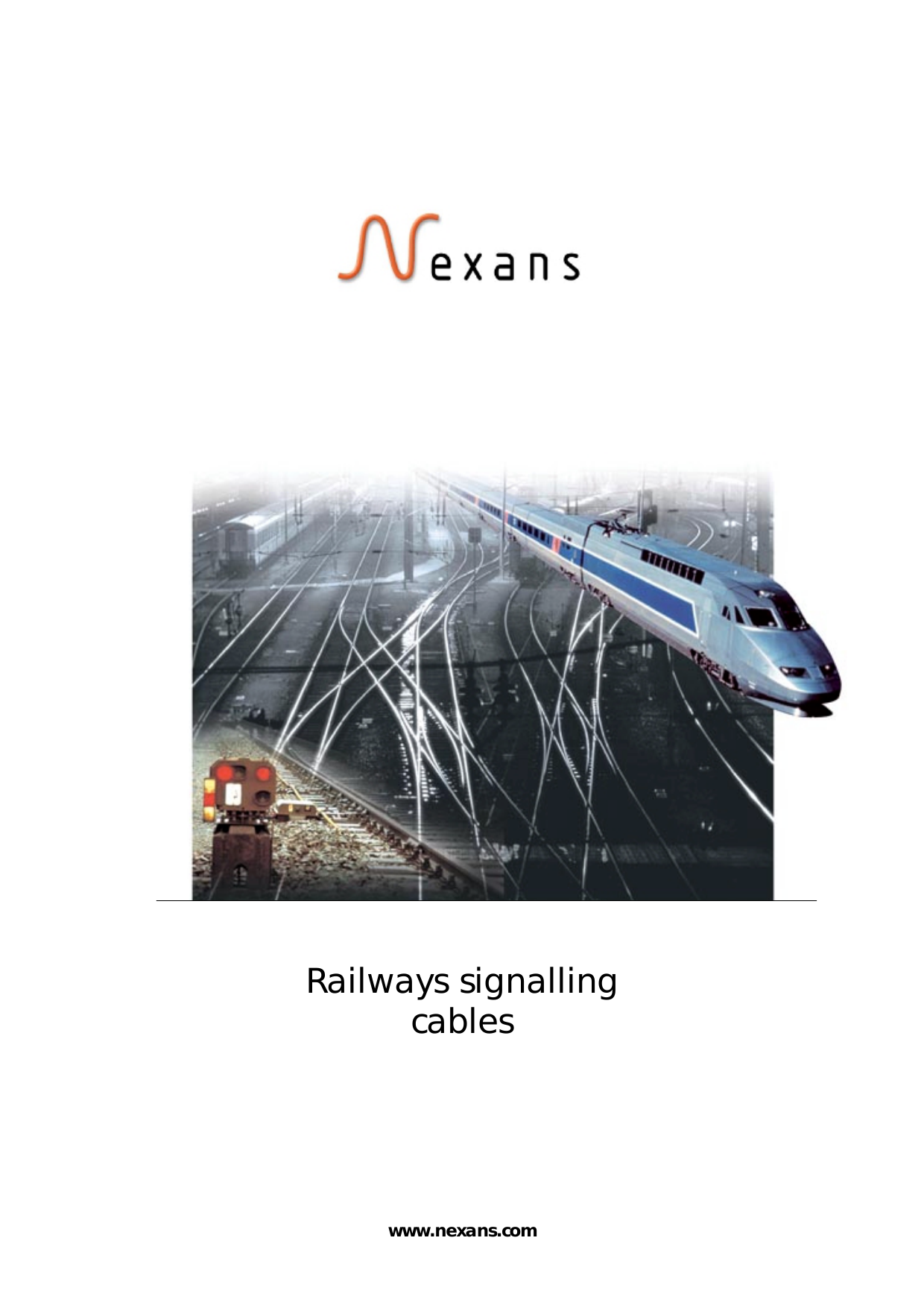

Railways signalling
cables
www.nexans.com
2
NEXANS IBERIA S.L. – c/ Concha Espina s/n - 39600 - Maliaño - Cantabria – SPAIN
Tel.: +34 942 250 100 - Fax: +34 942 269 097 – www.nexans.com
[email protected]
CONTENTS
Cable type
Page
ZPAU SH ……………………………………………………………………………
ZPFU SH ……………………………………………………………………………
ZC03 ……………………………………………………………………………….
ZUG ………………………………………………………………………………...
5
7
9
11
AJ-2Y2YDB2Y H115/H145 rk 501S …………………………………………….
A-2Y(L)2Yv S ……………………………………………………………………….
13
15
15 ECWF …………………………………………………………………………...
15 / 19EXEF Serie 400 ……………………………………………………………
17
19
RT/ZHLS Duct ….…………………………….…………………………………….
RT/F3 S ……………………………………...……………………………………..
RT/F3 E3 ……………………………...……………………………………………
21
23
25
K23 …………………………………………………………………………………
DIGICODE – Indoor ………………………………………………………………
27
29
[email protected]
3
RAILWAYS CONTROL AND SIGNALLING
ZPAU-SH cable type
Applications
Signalling circuits in railway networks.
4. Stranding
Pairs are helically
stranded to get the cable
core
Family
5. Core wrapping
Plastic tape(s) with overlapping
Low reduction factor,
halogen free, flame
retardant cables
Design
6. Inner sheath
HFFRLS compound
1. Conductor
Copper wire, 1.13 mm
nominal diameter (1 mm2
cross section)
7. Induction protection
One corrugated copper
tape
2. Insulation
Solid polyethylene
8. Intermediate
sheath
HFFRLS compound
3. Twinning
Two conductors are
twisted to form a pair
9. Electromagnetic
protection
Two helically applied steel
tapes
10. Outer sheath
HFFRLS compound
Standards: SNCF CT 445, NF C 32-070 Category C1 (fire performance)
Optionally: ZPAU: PE/PE/PVC sheaths and NF C 32-070 Category C2 compliant
Electrical Characteristics at 20ºC
Parameter
DC conductor resistance, maximum
Insulation resistance
Minimum value after 3 min, 500 VDC
Mutual capacitance, AC 1000Hz, maximum
Capacitance unbalance, maximum
Dielectric strength, 3 min DC voltage
Between conductors
Unit
Value
Ω/km
18.1
MΩ.km
nF/km
pF/500 m
5000
55
400
V
4500
[email protected]
5
ZPAU-SH cable type
Physical Characteristics
No. of
Pairs
Conductor
diameter
(mm)
Inner
Interm.
4
1.13
1.0
0.8
Outer
Nominal
outer diameter
(mm)
Nominal
weight
(kg/km)
Nominal
delivery length
(m)
1.6
20.1
840
1000
Sheath Thickness (mm)
7
1.13
1.0
0.8
1.7
22.3
1017
1000
14
1.13
1.2
0.8
1.8
27.4
1406
1000
21
1.13
1.2
1.1
2.0
31.7
1788
1000
28
1.13
1.2
1.1
2.2
34.9
2028
1000
56
1.13
1.3
1.3
2.5
44.8
3217
500
Reduction Factor
Inductive voltage (V/km)
37
47
70
100
120
225
Reduction factor at 50Hz
0.60
0.40
0.30
0.26
0.24
0.25
6
[email protected]
ZPFU-SH cable type
Applications
Signalling circuits in railway
networks.
4. Stranding
Pairs are helically stranded to
get the cable core
5. Core wrapping
Family
Halogen free, flame
retardant cables
6. Inner sheath
HFFRLS compound
Design
1. Conductor
cross section)
7. Mechanical protec
protection
tapes
8. Outer sheath
HFFRLS compound
2. Insulation
Solid polyethylene
3. Twinning
Two conductors are twisted
to form a pair
Optionally: ZPFU: PE/PVC sheaths and NF C 32-070 Category C2 compliant
Parameter
Between conductors
Unit
Value
Ω/km
18.1
MΩ.km
nF/km
pF/500 m
5000
55
400
V
4500
[email protected]
7
ZPFU-SH cable type
**17EPFU0001***A*
**17EXFU0001***A*
1
1.13
1.0
1.5
Nominal
outer
diameter
(mm)
11.7
207
Nominal
delivery
length
(m)
1000
2
1.13
1.0
1.5
12.9
257
1000
**17EPFU0004***A*
4
1.13
1.0
1.6
16.8
509
1000
Item code
No.
of
Pairs
Conductor
diameter
(mm)
Sheath Thickness
(mm)
Inner
Outer
Nominal
weight
(kg/km)
**17EPFU0007***A*
7
1.13
1.0
1.7
19.0
653
1000
**17EPFU0014***A*
14
1.13
1.2
1.8
24.1
1011
1000
**17EPFU0021***A*
21
1.13
1.2
2.0
27.8
1304
1000
**17EPFU0028***A*
28
1.13
1.2
2.2
31.0
1594
1000
**17EPFU0056***A*
56
1.13
1.3
2.5
40.5
2630
1000
8
[email protected]
ZC03 cable type
4. Stranding
Quads are helically stranded
to get the cable core
Applications
Control and signalling circuits in high-speed railway
networks.
5. Core wrapping
Family
Low reduction factor cables
Design
1. Conductor
cross section)
6. Inner sheath
Low density polyethylene
7. Electrostatic shield
Corrugated copper tape
8. Intermediate sheath
2. Insulation
Solid polyethylene
9. Electromagnetic shiel
shield
tapes
3. Quadding
Four conductors are twisted
to form a quad
10. Outer sheath
Polyvinyl chloride (PVC)
compound
Optionally: ZC03-SH: HFFRLS sheaths and NF C 32-070 Category C1 compliant
Parameter
Between conductors
Unit
Value
Ω/km
18.1
MΩ.km
nF/km
pF/500 m
5000
40
400
V
4500
[email protected]
9
ZC03 cable type
Item code
Sheath Thickness
(mm)
No. of
Pairs
Conductor
diameter
(mm)
Inner
Interm.
Outer
4
1.13
0.8
1.0
1.6
**17EXCZ0004***A*
Nominal
outer
diameter
(mm)
27.0
Nominal
weight
(kg/km)
1295
Nominal
delivery
length
(m)
500
Reduction Factor
Inductive voltage (V/km)
50
70
100
370
400
470
Reduction factor at 50Hz
0.42
0.30
0.21
0.16
0.18
0.31
10
[email protected]
RAILWAYS INDOOR EQUIPMENT
ZUG cable type
Applications
Indoor interconnection cable
for railways network equipment.
4. Stranding
get the cable core
5. Core wrapping
Family
Flame retardant cables
6. Sheath
Flame retardant PVC
Design
1. Conductor
Class 5 stranded tinned copper wire, 1 mm2 cross section.
2. Insulation
Coloured PVC
3. Twinning
to form a pair
Standards: SNCF CT 455, Fire performance: IEC 60332-1, NF C 32070 Cat C2
Optionally: ZUT cable type: tinned copper braid for electrostatic protection
SUG cable type: individual conductors core (no twisting)
All cable types also available in halogen free, flame retardant, low smoke version
Parameter
Conductor cross section, nominal
Unit
2
mm
Ω/km
Value
0.38
52.5
[email protected]
1
20.1
11
AJ-2Y2YDB2Y H115/H145 rk 501 S cable type
No.
of
Pairs
12
Conductor cross
section
Sheath thickness (mm)
(mm2)
Nominal
outer diameter
(mm)
Nominal
weight
(kg/km)
Nominal
delivery length
(m)
28
0.38
0.7
15.7
310
500
1
3
6
12
1
1
1
1
0.7
0.7
0.7
0.7
7.0
9.9
12.4
15.7
59
108
184
335
500
500
500
500
[email protected]
Applications
3. Stranding
Single conductors are helically
stranded in concentric layers
Transmission of service tensions up to 600 VDC / 420
Veff AC100Hz in railways signalling networks
Cables from 14 conductors on, have two
extra conductors with perforated insulation (surveillance conductors)
Family
4. Core wrapping
Low reduction factor, single
conductors signal cables
Design
1. Conductor
Copper wire, 0.9, 1.4 or
1.8 mm nominal diameter
2. Insulation
Solid polyethylene
5. Inner sheath
One layer of helically applied
copper wires
7. Electromagnetic shield
tapes
8. Outer sheath
Standards: Dlk 1.013.107y, Dlk 1.013.110y
Optionally: A-2Y2Yv cable type: without induction protection
A-2Y2YB2Y cable type: without induction protection, with rodent protection
Various reduction factor levels (see electrical characteristics table)
Parameter
Unit
Value
Conductor diameter, nominal
Conductor resistance, maximum
Minimum value after 1 min, 500 Vdc
Conductor capacitance, AC 800Hz, maximum
Dielectric strength between conductors, 1 min DC voltage
Surveillance conductors
Loop resistance, maximum
- dry cable core, minimum
- wet cable core, maximum
Reduction factor, nominal @ 100 V/km, 16 2/3 Hz
rk 401 series (optional)
rk 501 series
rk 601 series (optional)
mm
Ω/km
0.9
28.9
MΩ.km
nF/km
V
115
1.4
11.9
10000
145
3535
Ω/km
190
MΩ.km
KΩ.km
1000
30
[email protected]
1.8
7.2
0.15
0.35
0.55
13
Item code
**19ECEG0010***GA
**19ECEG0020***GA
**19ECEG0030***GA
**19ECEG0050***GA
**19ECEG0080***GA
**19ECEG0120***GA
**19ECEG0160***GA
**19ECEG0200***GA
**15ECEG0010***EA
**15ECEG0020***EA
**15ECEG0030***EA
**15ECEG0050***EA
**15ECEG0080***EA
**15ECEG0120***EA
**15ECEG0160***EA
**15ECEG0200***EA
**13ECEG0010***EA
**13ECEG0020***EA
**13ECEG0030***EA
**13ECEG0050***EA
**13ECEG0080***EA
**13ECEG0120***EA
**13ECEG0160***EA
**13ECEG0200***EA
14
Number
of conductors
Conductor
Diameter
(mm)
10
20
30
50
80
120
160
200
10
20
30
50
80
120
160
200
10
20
30
50
80
120
160
200
0.9
0.9
0.9
0.9
0.9
0.9
0.9
0.9
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.8
1.8
1.8
1.8
1.8
1.8
1.8
1.8
Nominal sheath
radial thickness (mm)
Inner
Outer
Nominal outer
diameter
(mm)
1.3
1.3
1.3
1.3
1.3
1.3
1.3
1.3
1.3
1.3
1.3
1.3
1.3
1.5
1.5
1.5
1.3
1.3
1.3
1.3
1.5
1.5
1.5
1.5
1.2
1.2
1.2
1.2
1.2
1.3
1.3
1.3
1.2
1.2
1.2
1.3
1.3
1.3
1.3
1.5
1.2
1.2
1.3
1.3
1.3
1.5
1.5
1.5
15.8
18.2
19.5
22.5
25.5
29.0
32.3
34.3
18.2
20.9
23.3
27.9
31.9
36.9
41.4
45.0
21.0
24.4
27.5
32.8
38.6
45.3
51.7
55.5
[email protected]
Nominal
delivery
length
(m)
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
500
500
500
1000
1000
1000
1000
500
500
250
250
A-2Y(L)2YV S cable type
Applications
Transmission of signals up
to 90 kHz in railway networks
Family
Low reduction factor, quad
signal cables
Design
1. Conductor
Copper wire, 0.9 or 1.4 mm
nominal diameter
4. Stranding
Quads are helically stranded
in concentric
layers.
Cables from 7 quads on, have two extra
conductors with perforated insulation
(surveillance conductors)
5. Core wrapping
6. Moisture barrier
One laminated aluminiumcopolymer tape, longitudinally
applied with overlap
7. Outer sheath
Polyethylene, with reinforced
radial thickness
2. Insulation
Solid polyethylene
3. Quadding
Four insulated conductors are
twisted together to form a
quad
Standards: Dlk 1.013.109y, Dlk 1.013.110y
Optionally: A-2Y(L)2YB2Y cable type: rodent protection
AJ-2Y(L)2YDB2Y cable type: induction protection (3 reduction factor levels available)
Parameter
Unit
Dielectric strength between conductors, 1 min DC voltage
Surveillance conductors
- dry cable core, minimum
- wet cable core, maximum
Optional: Reduction factor, nominal @ 100 V/km, 16 2/3 Hz
rk 401 series
rk 501 series
rk 601 series
mm
Ω/km
Value
0.9
56.6
1.4
23.4
MΩ.km
nF/km
V
10000
45
3535
Ω/km
190
MΩ.km
KΩ.km
1000
30
[email protected]
0.15
0.35
0.55
15
A-2Y(L)2YV S cable type
Item code
Number
of quads
**19EXDG0001**A**
**19EXDG0003**A**
**19EXDG0005**A**
**19EXDG0007**A**
**19EXDG0010**A**
**19EXDG0014**A**
**19EXDG0020**A**
**19EXDG0030**A**
**19EXDG0040**A**
**15EXDG0001**A**
**15EXDG0003**A**
**15EXDG0005**A**
**15EXDG0007**A**
**15EXDG0010**A**
**15EXDG0014**A**
**15EXDG0020**A**
**15EXDG0030**A**
**15EXDG0040**A**
1
3
5
7
10
14
20
30
40
1
3
5
7
10
14
20
30
40
16
Conductor
Diameter
(mm)
0.9
0.9
0.9
0.9
0.9
0.9
0.9
0.9
0.9
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
Nominal sheath
radial thickness
(mm)
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.2
2.2
2.0
2.0
2.0
2.0
2.0
2.2
2.2
2.2
2.2
Nominal outer
diameter
(mm)
10.0
13.7
15.9
17.1
21.0
22.5
24.9
30.8
33.6
12.5
17.5
22.4
22.6
27.8
31.6
38.0
43.1
47.2
[email protected]
Nominal
delivery
length (m)
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
500
15ECWF cable type
Applications
Transmission of service tensions in railway networks
Family
Armoured, individual conductor cables
4. Core wrapping
5. Moisture barrier
Design
6. Inner sheath
1. Conductor
Copper wire, 1.4 mm nominal diameter (1.5 mm2 nominal cross section)
7. Mechanical protection
One corrugated steel tape,
longitudinally applied with
overlap
2. Insulation
Solid polyethylene
8. Outer sheath
3. Stranding
Conductors are helically
stranded in concentric
layers.
Standards: RENFE E.T. 03.365.051.6
Optionally: Longitudinally watertight (jelly filled)
Series 400, 500 and 600: induction protection (3 reduction factor levels available)
Self supported aerial laying version
Parameter
Minimum value, 500 Vdc
Dielectric strength, 10 sec DC voltage
Conductor – conductor
Conductor – screen
Optional: Reduction factor, maximum
400 series, 200 ÷ 500 V/km, 50 Hz
500 series, 120 ÷ 300 V/km, 50 Hz
600 series, 110 ÷ 320 V/km, 50 Hz
Unit
Value
mm
Ω/km
1.4
11.9
MΩ.km
35000
V
V
3000
3500
[email protected]
0.1
0.2
0.3
17
15ECWF cable type
Item code
Number of conductors
**15ECWF0004*****
**15ECWF0007*****
**15ECWF0009*****
**15ECWF0012*****
**15ECWF0019*****
**15ECWF0027*****
**15ECWF0037*****
**15ECWF0048*****
**15ECWF0061*****
**15ECWF0075*****
**15ECWF0100*****
4
7
9
12
19
27
37
48
61
75
100
18
Conductor
Diameter
(mm)
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
Nominal sheath
radial thickness
(mm)
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.5
Nominal outer
diameter
(mm)
14.2
15.7
17.2
18.2
20.7
23.4
25.9
28.6
30.6
33.8
38.2
[email protected]
15 / 19EXEF Serie 400 cable type
Applications
Transmission of low frequency signals in high
speed railway networks
Family
Low reduction factor, quad
signal cables
Design
1. Conductor
Copper wire, 0.9 or 1.4 mm
nominal diameter
4. Stranding
Conductors are helically
stranded in concentric layers
5. Core wrapping
copper wires or one corrugated copper tape
8. Electromagnetic shield
tapes
2. Insulation
Solid polyethylene
3. Quadding
Four insulated conductors are
twisted together to form a
quad
9. Outer sheath
Polyethylene, with reinforced
radial thickness
Standards: RENFE E.T. 03.365.051.6
Optionally: Longitudinally watertight (jelly filled)
500 and 600 series: induction protection (lower protection levels)
Parameter
Mutual capacitance, AC 800 Hz, maximum
Side – side or Pair – pair
Pair – ground
Dielectric strength, 10 sec DC voltage
Conductor – conductor
Unit
Value
mm
Ω/km
0.9
29.0
MΩ.km
nF/km
45
1.4
11.9
35000
48
pF/460 m
pF/460 m
250
1200
V
V
3000
3500
[email protected]
19
15 / 19EXEF Serie 400 cable type
Electrical Characteristics at 20ºC (continuation)
Parameter
Unit
Reduction factor, maximum
400 series, 200 ÷ 500 V/km, 50 Hz
500 series, 120 ÷ 300 V/km, 50 Hz (Optional)
600 series, 110 ÷ 320 V/km, 50 Hz (Optional)
Atenuation, maximum
@ 1 KHz
@ 10 KHz
@ 30 KHz
Value
mm
0.9
1.4
0.1
0.2
0.3
dB/km
dB/km
dB/km
0.70
1.60
2.10
0.46
0.85
1.30
Item code
Number
of quads
Conductor
Diameter
(mm)
**19EXEF0001***AS
**19EXEF0003***AS
**19EXEF0005***AS
**19EXEF0007***AS
**19EXEF0010***AS
**19EXEF0014***AS
**19EXEF0019***AS
**19EXEF0027***AS
**19EXEF0037***AS
**19EXEF0048***AS
**15EXEF0001***AS
**15EXEF0003***AS
**15EXEF0005***AS
**15EXEF0007***AS
**15EXEF0010***AS
**15EXEF0014***AS
**15EXEF0019***AS
**15EXEF0027***AS
**15EXEF0037***AS
**15EXEF0048***AS
1
3
5
7
10
14
19
27
37
48
1
3
5
7
10
14
19
27
37
48
0.9
0.9
0.9
0.9
0.9
0.9
0.9
0.9
0.9
0.9
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
20
Nominal sheath radial
thickness mm)
Inner
Outer
Nominal outer
diameter
(mm)
1.5
1.5
1.5
1.5
1.5
1.6
1.7
1.7
1.8
1.9
1.5
1.5
1.6
1.6
1.7
1.7
1.8
2.0
2.1
2.2
1.6
1.6
1.6
1.6
1.6
1.8
1.8
1.8
2.0
2.0
1.6
1.6
1.8
1.8
1.8
1.8
2.0
2.2
2.2
2.3
18.3
21.7
25.2
26.7
29.2
32.3
36.0
40.0
45.6
49.8
20.2
25.7
30.8
32.8
36.5
40.5
45.6
52.3
59.1
66.0
[email protected]
RT / ZHLS Duct cable type
Applications
Railways telecommunications
Family
Dry ZHLS cable for nonelectrified areas
Design
1. Conductor
Tinned copper wire, 0.63 or
2. Insulation
Solid polyethylene
4. Stranding
Pairs are helically stranded in
10 pair units.
5. Longitudinal watertightness
Water blocking binders /
tapes
6. Core wrapping
7. Moisture barrier
3. Twinning
8. Outer sheath
Two insulated conductors are HFFRLS compound
twisted together to form a pair
Standards: RT/E/PS/00015
HFFRLS cables: IEC 60332-3 cat C (flammability), Smoke density: EN 50268-2
Optionally: Jelly filled, non HFFRLS cables
Armoured cables
Parameter
Insulation resistance, minimum value after 1 min, 500 Vdc
Mutual capacitance, AC 1000 Hz, maximum
Up to 20 pairs
More than 20 pairs
Dielectric strength conductors / screen, 2 min DC voltage
Unit
Value
mm
Ω/km
MΩ.km
0.63
60.0
nF/km
nF/km
V
79.0
75.0
0.9
30.0
1500
[email protected]
85.0
81.0
2000
21
RT / ZHLS Duct cable type
Parameter
Unit
Attenuation, maximum average
@ 1.0kHz
@ 2.4kHz
@ 1.024 MHz
Near end crosstalk attenuation, minimum average
@ 1.0kHz
@ 1.024 MHz
dB/km
dB/km
dB/km
Value
1.40
2.15
18.70
dB/km
dB/km
0.95
1.46
14.6
70
40
Item code
Number
of pairs
Conductor
Diameter
(mm)
Nominal
sheath
thickness
(mm)
Maximum
outer
diameter
(mm)
Nominal weight
(kg)
Nominal
delivery length
(m)
**22EPFB0002*T***
**22EPFB0005*T***
**22EPFB0010*T***
**22EPFB0020*T***
**22EPFB0030*T***
**22EPFB0050*T***
**22EPFB0075*T***
**22EPFB0100*T***
**19EPFB0002*T***
**19EPFB0005*T***
**19EPFB0010*T***
**19EPFB0020*T***
**19EPFB0030*T***
**19EPFB0050*T***
**19EPFB0075*T***
**19EPFB0100*T***
2
5
10
20
30
50
75
100
2
5
10
20
30
50
75
100
0.63
0.63
0.63
0.63
0.63
0.63
0.63
0.63
0.9
0.9
0.9
0.9
0.9
0.9
0.9
0.9
2.7
2.7
2.7
2.7
2.7
2.7
2.7
2.7
2.7
2.7
2.7
2.7
2.7
2.7
2.7
2.7
12.3
13.8
15.6
18.1
20.4
24.2
28.2
31.0
13.3
15.6
18.1
21.9
25.2
30.0
35.8
39.1
124
177
237
342
436
615
829
1033
150
232
331
506
674
995
1378
1755
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
22
[email protected]
RT / F3 S cable type
Transmission of signals up to Cable core interstices are
90 kHz in axle counter train filled with a low-permitivity
compound
detection systems
Applications
Family
Filled ZHLS cable for nonelectrified areas
Design
1. Conductor
2. Insulation
Solid polyethylene
3. Twinning
Two insulated conductors are
twisted together to form a pair
4. Stranding
concentric layers.
6. Core wrapping
7. Moisture barrier
8. Inner sheath
HFFRLS compound
9. Mechanical protection
One corrugated steel tape,
longitudinally applied with
overlap
10. Outer sheath
HFFRLS compound
HFFRLS cables: IEC 60332-3 cat C (flammability), IEC 61034 (smoke emission)
Optionally: F1 class: no HFFRLS cables
F5 class: unfilled cables
D type (unarmoured), R type (ruggedised PE sheath) and B type (brass tape armour)
E1, E2, E3 types: induction protection (3 different protection levels)
Parameter
Mutual capacitance, AC 800 / 1000 Hz, nominal
Unit
Value
mm
Ω/km
0.9
30.0
MΩ.km
nF/km
V
42 ± 3
1.4
12.5
5000
[email protected]
47 ± 3
3000
23
RT / F3 S cable type
Parameter
Unit
@ 1.0kHz
@ 2.4kHz
@ 40kHz
@ 90kHz
@ 1.024 MHz
Near end crosstalk attenuation, minimum average
@ 1.0kHz
@ 2.4kHz
@ 40kHz
@ 90kHz
@ 1.024 MHz
Optional: Reduction factor, maximum @ 100 V/km, 50 Hz
EMI RF 1 (modest level)
EMI RF 2 (medium level)
EMI RF 3 (high level)
Value
dB/km
dB/km
dB/km
dB/km
dB/km
0.73
1.10
2.88
3.70
11.2
dB/km
dB/km
dB/km
dB/km
dB/km
0.45
0.62
1.77
2.41
7.45
60
60
50
50
35
0.65
0.45
0.20
Item code
**19EPQB0002*RF**
**19EPQB0010*RF**
**19EPQB0012*RF**
**19EPQB0019*RF**
**19EPQB0024*RF**
**15EPQB0002*RF**
**15EPQB0010*RF**
**15EPQB0012*RF**
**15EPQB0019*RF**
**15EPQB0024*RF**
24
Number
of pairs
2
10
12
19
24
2
10
12
19
24
Conductor
Diameter
(mm)
0.9
0.9
0.9
0.9
0.9
1.4
1.4
1.4
1.4
1.4
thickness (mm)
Inner
Outer
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.4
2.4
2.4
2.4
2.4
2.4
2.4
2.4
2.4
2.4
Maximum outer
diameter (mm)
Nominal
delivery length
(m)
22.0
30.4
33.6
40.0
42.6
32.2
38.8
40.8
46.1
51.1
500
500
500
500
500
500
500
500
500
500
[email protected]
RT / F3 E3 cable type
Transmission of signals up to Cable core interstices are
90 kHz in axle counter train filled with a low-permitivity
compound
detection systems
Applications
Family
Filled ZHLS cable for electrified areas
Design
1. Conductor
2. Insulation
Solid polyethylene
6. Core wrapping
7. Moisture barrier
8. Inner sheath
HFFRLS compound
copper wires
3. Twinning
Two insulated conductors are
twisted together to form a pair 10. Electromagnetic shield
4. Stranding
tapes
concentric layers.
11. Outer sheath
HFFRLS compound
HFFRLS cables: IEC 60332-3 cat C (flammability), IEC 61034 (smoke emission)
Optionally: F1 class: no HFFRLS cables
F5 class: unfilled cables
D type (unarmoured), R type (ruggedised PE sheath), S type (corrugated steel armour) and
B type (brass tape armour)
E1, E2 types: lower induction protection levels
Parameter
Mutual capacitance, AC 800 / 1000 Hz, nominal
Unit
Value
mm
Ω/km
0.9
30.0
MΩ.km
nF/km
V
42 ± 3
1.4
12.5
5000
[email protected]
47 ± 3
3000
25
RT / F3 E3 cable type
Parameter
Unit
@ 1.0kHz
@ 2.4kHz
@ 40kHz
@ 90kHz
@ 1.024 MHz
Near end crosstalk attenuation, mimimum average
@ 1.0kHz
@ 2.4kHz
@ 40kHz
@ 90kHz
@ 1.024 MHz
Reduction factor, maximum @ 100 V/km, 50 Hz
EMI RF 1 (modest level) (optional)
EMI RF 2 (medium level) (optional)
EMI RF 3 (high level)
Value
dB/km
dB/km
dB/km
dB/km
dB/km
0.73
1.10
2.88
3.70
11.2
dB/km
dB/km
dB/km
dB/km
dB/km
0.45
0.62
1.77
2.41
7.45
60
60
50
50
35
0.65
0.45
0.20
Item code
Number
of pairs
**19EPFB0002*RFA*
**19EPFB0010*RFA*
**19EPFB0012*RFA*
**19EPFB0019*RFA*
**19EPFB0024*RFA*
**15EPFB0002*RFA*
**15EPFB0010*RFA*
**15EPFB0012*RFA*
**15EPFB0019*RFA*
**15EPFB0024*RFA*
2
10
12
19
24
2
10
12
19
24
26
Conductor
Diameter
(mm)
0.9
0.9
0.9
0.9
0.9
1.4
1.4
1.4
1.4
1.4
thickness (mm)
Inner
Outer
2.2
2.4
2.2
2.4
2.2
2.4
2.2
2.4
2.2
2.4
2.2
2.4
2.2
2.4
2.2
2.4
2.2
2.4
2.2
2.4
Maximum outer
diameter (mm)
23.4
31.8
35.0
41.4
44.0
33.6
40.2
42.2
47.5
52.5
[email protected]
Nominal
delivery length
(m)
500
500
500
500
500
500
500
500
500
500
K23 cable type
Applications
Remote controls and teletransmissions in underground railway networks.
4. Stranding
Quads are helically
stranded or oscillated to
form units to get the cable
core
Family
5. Core wrapping
Halogen free flame
retardant cables
Design
1. Conductor
Copper wire, 0.6, 0.8, 1.0
or 1.2 mm nominal diameter
2. Insulation
Solid polyethylene
3. Quadding
Four conductors are twisted
in star quads
6. Moisture barrier
One copolymer coated
laminated aluminium tape
7. Inner sheath
HFFRLS compound
8. Armour
tapes
9. Outer sheath
HFFRLS compound
Standards: NF F 55-623, NF C 32-070 Category C1 (fire performance)
Parameter
Conductor diameter
DC conductor resistance, maximum average
k1 (side to side)
k9-12 (quad to quad)
Between conductors
Between conductors and screen
Unit
mm
Ω/km
Value
0.6
64.0
0.8
36.0
1.0
23.0
MΩ.km
nF/km
5000
57.5
pF/500 m
pF/500 m
435
220
V
V
1500
1500
2000
1500
[email protected]
3000
1500
1.2
16.0
3000
1500
27
K23 cable type
Minimum sheath
thickness (mm)
Inner
Outer
1.0
1.0
2
-
Conductor
Diameter
(mm)
0.6
4
-
0.6
1.0
1.0
14.0
**22EXFF0004***A*
8
-
0.6
1.0
1.0
16.5
**22EXFF0007***A*
14
-
0.6
1.0
1.2
17.5
**22EXFF0010***A*
20
-
0.6
1.0
1.2
18.5
28
-
0.6
1.0
1.4
21.0
**22EXFF0019***A*
38
-
0.6
1.0
1.4
21.5
**22EXFF0028***A*
56
-
0.6
1.0
1.4
23.0
**22EXFF0042***A*
84
-
0.6
1.0
1.6
28.0
112
-
0.6
1.0
1.6
30.5
**22EXFF0059***A*
168
2
0.6
1.0
1.8
38.0
**22EXFF0112***A*
224
2
0.6
1.0
2.0
44.0
**22EXFF0140***A*
280
2
0.6
1.0
2.0
51.0
236
4
0.6
1.0
2.0
57.0
**22EXFF0196***A*
392
4
0.6
1.0
2.0
58.5
**22EXFF0224***A*
448
4
0.6
1.0
2.2
67.0
**22EXFF0392***A*
784
4
0.6
1.0
2.2
90.5
**22EXFF0448***A*
896
6
0.6
1.0
2.2
102.5
**20EXFF0001***A*
2
-
0.8
1.0
1.0
11.5
**20EPFF0004***A*
4
-
0.8
1.0
1.0
15.5
**20EXFF0004***A*
8
-
0.8
1.0
1.2
17.5
14
-
0.8
1.0
1.4
20.5
**20EXFF0010***A*
20
-
0.8
1.0
1.4
23.0
**20EXFF0014***A*
28
-
0.8
1.0
1.4
24.5
**20EXFF0019***A*
38
-
0.8
1.0
1.6
26.5
56
-
0.8
1.0
1.6
32.0
**20EXFF0042***A*
84
-
0.8
1.0
1.8
39.0
**20EXFF0056***A*
112
-
0.8
1.0
1.8
40.5
**18EXFF0001***A*
2
-
1.0
1.0
1.0
12.0
**18EPFF0004***A*
4
-
1.0
1.0
1.2
17.5
**18EXFF0004***A*
8
-
1.0
1.0
1.4
20.5
**18EXFF0007***A*
14
-
1.0
1.0
1.4
23.5
**18EXFF0010***A*
20
-
1.0
1.0
1.6
25.0
**18EXFF0014***A*
28
-
1.0
1.0
1.6
29.0
38
-
1.0
1.0
1.6
31.5
56
-
1.0
1.0
1.8
38.5
**18EXFF0042***A*
84
-
1.0
1.0
2.0
46.5
**18EXFF0056***A*
112
-
1.0
1.0
2.0
51.5
**17EPFF0001***A*
1
-
1.2
1.0
1.2
14.0
**17EXFF0001***A*
2
-
1.2
1.0
1.2
14.5
**17EPFF0004***A*
4
-
1.2
1.0
1.4
20.0
**17EXFF0004***A*
8
-
1.2
1.0
1.4
24.0
14
-
1.2
1.0
1.4
25.0
**17EXFF0010***A*
20
-
1.2
1.0
1.6
29.0
**17EXFF0014***A*
28
-
1.2
1.0
1.6
31.5
Item code
**22EXFF0001***A*
**22EPFF0004***A*
**22EXFF0014***A*
**22EXFF0056***A*
**22EXFF0118***A*
**20EXFF0007***A*
**20EXFF0028***A*
**18EXFF0019***A*
**18EXFF0028***A*
**17EXFF0007***A*
28
Number
of pairs
Spare
pairs
[email protected]
Maximum outer
diameter
(mm)
10.5
DIGICODE-INDOOR cable type
Applications
Transmission of track circuit
signals up to 30 kHz in electrified lines
4. Stranding
get the cable core
Family
5. Core wrapping
Halogen free, flame
retardant cables
6. Inner sheath
Design
7. Moisture barrier
One copolymer coated laminated aluminium tape
1. Conductor
Copper wire, 1.4 mm nominal diameter (0.6 mm for the
auxiliary pair)
2. Insulation
Polyethylene
3. Twinning
to form a pair
HFFRLS compound
9. Mechanical protec
protection
tapes
10. Outer sheath
HFFRLS compound
Standards: Fire performance: EN 50-266-2-4 & IEC 60332-3; Smoke density: EN 50268-2; Halogen
content: EN 50267-2-1; Gases acidity: EN-50267-2-2
Optionally: Outdoor PE version: no HFFRLS
Outdoor PVC version: EN 50-265-2-1, IEC 60332-1, NF C 32070 Cat C2 compliant
Parameter
Unit
Value
Resistance unbalance, maximum
Insulation resistance, 1 minute 500 VDC, minimum
Between conductors
Spark test on outer sheath, AC voltage, minimum
Ω/km
%
MΩ.km
12.1
3
5000
V
V
V
1000
3000
5000
[email protected]
29
DIGICODE-INDOOR cable type
Parameter
Mutual capacitance
Data pairs (maximum)
Auxiliary pair (nominal)
Pair – pair
Pair – ground
Characteristic pair attenuation, maximum
@ 2.1 KHz
@ 4.1 KHz
@ 9.5 KHz
@ 20.7 KHz
Near end crosstalk att. (NEXT), minimum
@ 4.1 KHz
@ 20.7KHz
Far end crosstalk attenuation (FEXT), minimum
@ 4.1 KHz
@ 20.7KHz
Unbalance attenuation, minimum
Rated voltage, maximum
Between pair conductors
Rated current, maximum
Unit
Value
nF/km
nF/km
45
50
pF/500 m
pF/500 m
400
1500
dB/km
dB/km
dB/km
dB/km
0.64
0.76
1.05
1.28
dB/km
dB/km
54
42
dB/km
dB/km
dB
59
48
40
V rms
A rms
220
1
Item code
**15SPFX0001***A*
**15SPFX0002***A*
**15SPFX0003***A*
(1)
No.
of
Pairs
(1)
1
2(1)
3
Sheath Thickness
(mm)
Conductor
diameter
(mm)
Inner
Interm.
Outer
1.4*
1.4*
1.4
0.7
0.7
0.7
1.3
1.3
1.3
1.5
1.5
1.5
Nominal
outer
diameter
(mm)
17.9
19.2
20.2
Nominal
weight
(kg/km)
428
497
562
Plus one auxiliary pair with 0.6 mm conductors.
30
[email protected]
Nominal
delivery
length
(m)
1200 or 750
1200 or 750
1200 or 750
March 2004 – Copyright © 2004 – Nexans Iberia
NEXANS IBERIA S.L.
c/ Concha Espina s/n - 39600 - Maliaño - Cantabria – SPAIN
Tel.: +34 942 250 100 - Fax: +34 942 269 097 - www.nexans.com
[email protected]

Railways signalling cables

Transcription

Similar documents
