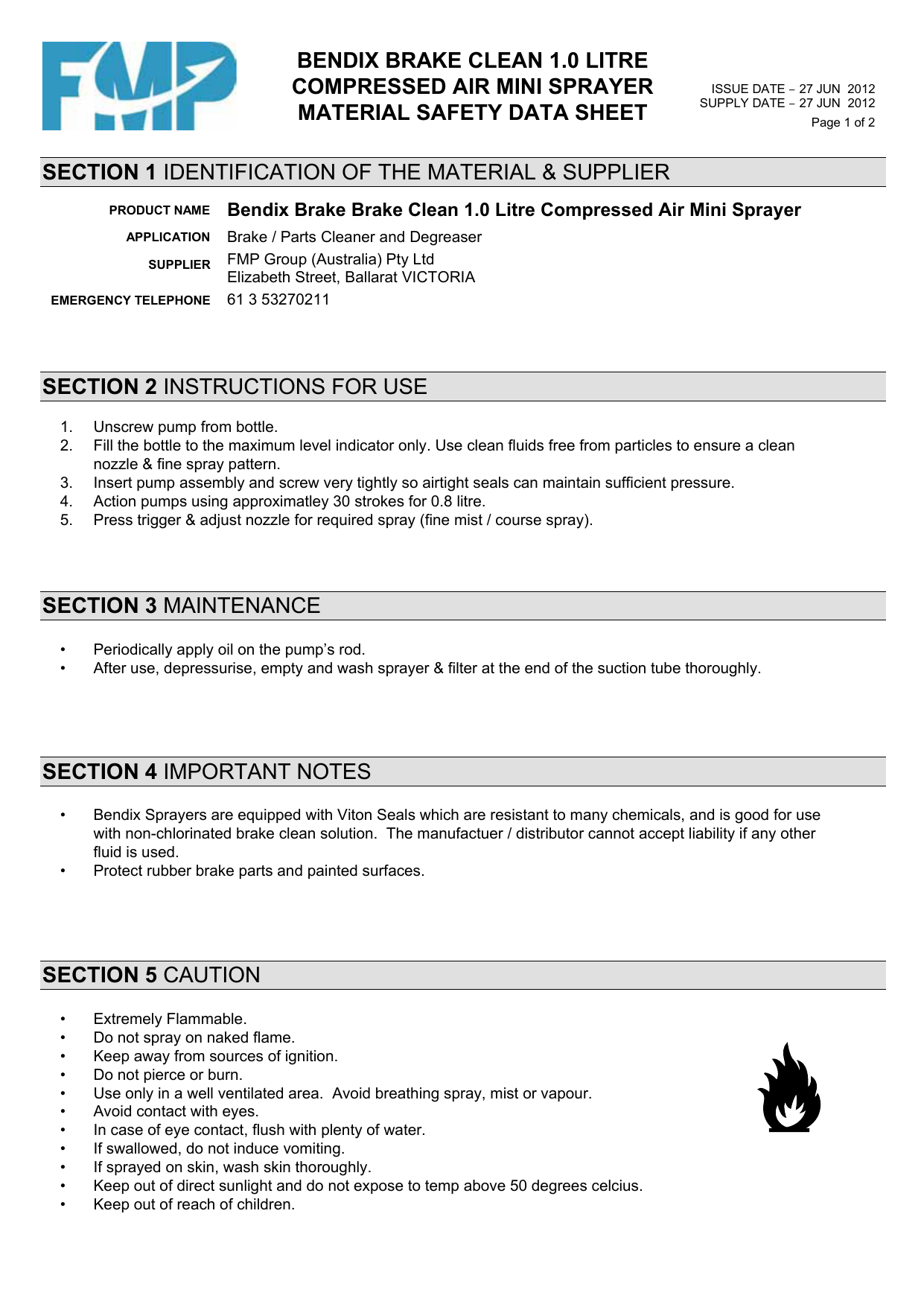

Pump Spray Bottle MSDS

BENDIX BRAKE CLEAN 1.0 LITRE
COMPRESSED AIR MINI SPRAYER
MATERIAL SAFETY DATA SHEET
ISSUE DATE – 27 JUN 2012
SUPPLY DATE – 27 JUN 2012
Page 1 of 2
SECTION 1 IDENTIFICATION OF THE MATERIAL & SUPPLIER
PRODUCT NAME
APPLICATION
SUPPLIER
EMERGENCY TELEPHONE
Bendix Brake Brake Clean 1.0 Litre Compressed Air Mini Sprayer
Brake / Parts Cleaner and Degreaser
FMP Group (Australia) Pty Ltd
Elizabeth Street, Ballarat VICTORIA
61 3 53270211
SECTION 2 INSTRUCTIONS FOR USE
1.
2.
3.
4.
5.
Unscrew pump from bottle.
Fill the bottle to the maximum level indicator only. Use clean fluids free from particles to ensure a clean
nozzle & fine spray pattern.
Insert pump assembly and screw very tightly so airtight seals can maintain sufficient pressure.
Action pumps using approximatley 30 strokes for 0.8 litre.
Press trigger & adjust nozzle for required spray (fine mist / course spray).
SECTION 3 MAINTENANCE
•
•
Periodically apply oil on the pump’s rod.
After use, depressurise, empty and wash sprayer & filter at the end of the suction tube thoroughly.
SECTION 4 IMPORTANT NOTES
•
•
Bendix Sprayers are equipped with Viton Seals which are resistant to many chemicals, and is good for use
with non-chlorinated brake clean solution. The manufactuer / distributor cannot accept liability if any other
fluid is used.
Protect rubber brake parts and painted surfaces.
SECTION 5 CAUTION
•
•
•
•
•
•
•
•
•
•
•
Extremely Flammable.
Do not spray on naked flame.
Keep away from sources of ignition.
Do not pierce or burn.
Use only in a well ventilated area. Avoid breathing spray, mist or vapour.
Avoid contact with eyes.
In case of eye contact, flush with plenty of water.
If swallowed, do not induce vomiting.
If sprayed on skin, wash skin thoroughly.
Keep out of direct sunlight and do not expose to temp above 50 degrees celcius.
Keep out of reach of children.
BENDIX BRAKE CLEAN 1.0 LITRE
COMPRESSED AIR MINI SPRAYER
MATERIAL SAFETY DATA SHEET
ISSUE DATE – 27 MAR 2012
SUPPLY DATE – 27 MAR 2012
Page 2 of 2
SECTION 6 COMPONENT IDENTIFICATION
COMPONENT LIST:
175
174
173
172
171
168
167
166
165
164
163
162
161
150
140
130
120
110
100
90
80
70
60
50
40
30
20
10
Gasket
Nozzle screw
Nozzle brass insert
O-Ring 5.0 x 1.5
Swirl piece
Filter
Suction tube
Bottle O-Ring 36.0 x 4.0
Valve screw cap
Valve spring
Valve plunger
O-Ring 3.0 x 2.7
Pump cylinder
Retaining disc
Plastic ball
Clip
Pump guide rod
Plunger
Screw
O-Ring 5.0 x 1.5
O-Ring 14.0 x 3.5
Pressure Spring
Spring
Swirl cone
Triggerl
Rod Lid
Pump with rod lid
Sprayer top
30
20
130
50
175
90
40
150
173
100
174
172
171
DESCRIPTION:
Bendix Brake Clean 1.0 Litre Compressed Air Mini Sprayer
PART NUMBER:
BBC1L-PUMP
180
60
10
140
110
90
120
70
80
167
168
161
162
166
163
164
165
