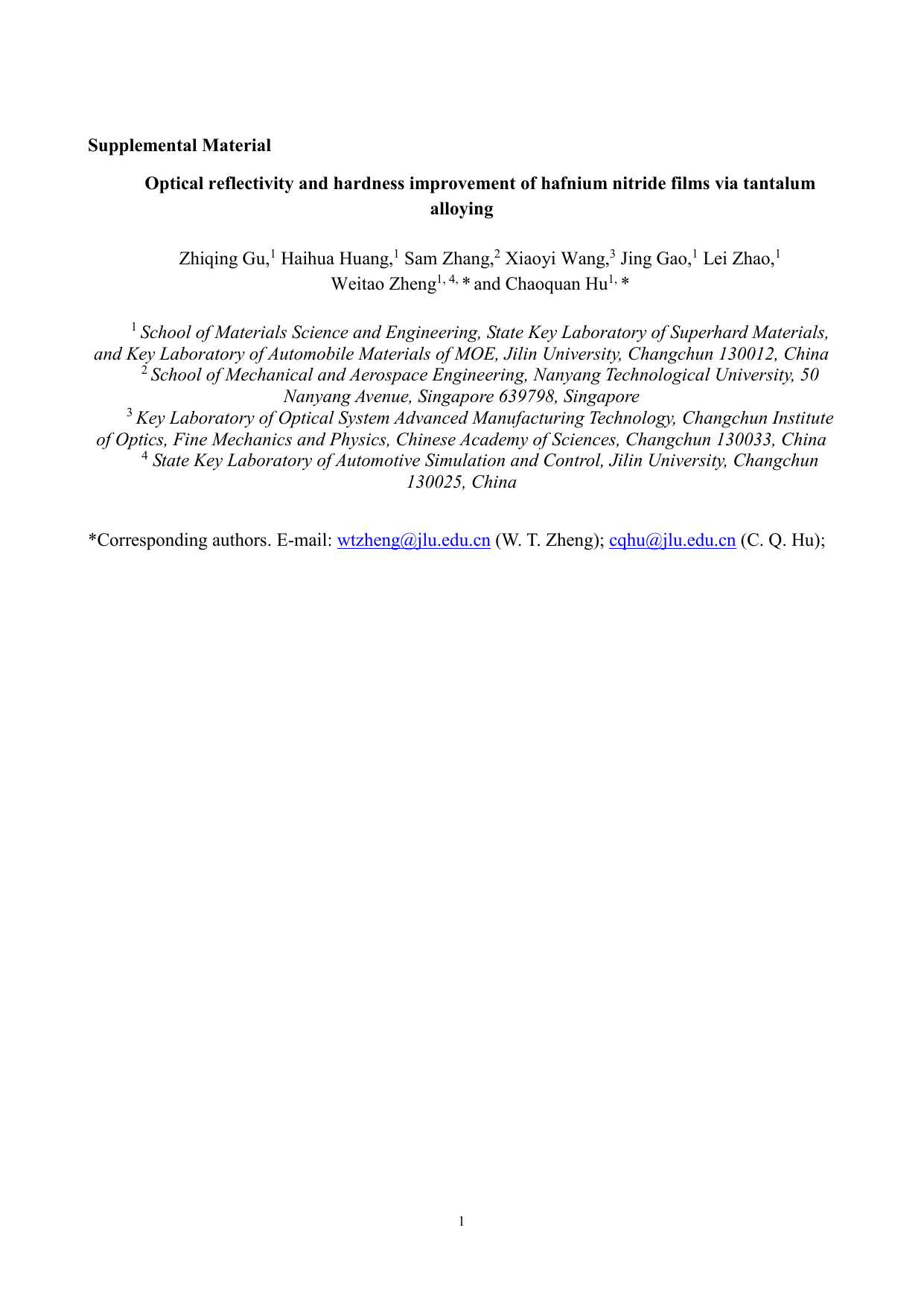

Optical reflectivity and hardness improvement of hafnium nitride films via tantalum
alloying
Zhiqing Gu,1 Haihua Huang,1 Sam Zhang,2 Xiaoyi Wang,3 Jing Gao,1 Lei Zhao,1
Weitao Zheng1, 4, * and Chaoquan Hu1, *
1
School of Materials Science and Engineering, State Key Laboratory of Superhard Materials,
and Key Laboratory of Automobile Materials of MOE, Jilin University, Changchun 130012, China
2
School of Mechanical and Aerospace Engineering, Nanyang Technological University, 50
Nanyang Avenue, Singapore 639798, Singapore
3
Key Laboratory of Optical System Advanced Manufacturing Technology, Changchun Institute
of Optics, Fine Mechanics and Physics, Chinese Academy of Sciences, Changchun 130033, China
4
State Key Laboratory of Automotive Simulation and Control, Jilin University, Changchun
130025, China
*Corresponding authors. E-mail: [email protected] (W. T. Zheng); [email protected] (C. Q. Hu);
1
FIG. S1. The measured and fitted reflectivity spectra of Hf1-xTaxN films with x = 0 (a), 0.03 (b), 0.06
(c), 0.11 (d), 0.26 (e) and 1.00 (f).
2
FIG. S2. Central energy E0, strength S, and width Γ in the (a) high-energy (OH) and (b) low-energy
(OL) Lorentz oscillators and (c) Drude parameters including relaxation time τ, plasma energy Ep,
dielectric constant ε∞ for Hf1-xTaxN films with different x. For the sake of comparison, the energy
positions of two peaks occurring in the DOS spectra obtained by first-principles calculations are
also shown.
3
FIG. S3. The (a) measured cutoff wavelengths at the minimum reflectance (λRmin) for Hf1-xTaxN
films with different x, and the (b-j) simulated λRmin obtained at different Drude and Lorentz
parameters.
4
FIG. S4. The (a) measured reflectance in the infrared region (RIR) for Hf1-xTaxN films with different
x, and the (b-j) simulated RIR obtained at different Drude and Lorentz parameters.
5
FIG. S5. Five models for HfN, Hf3TaN4, Hf2Ta2N4, HfTa3N4 and TaN structure.
6
FIG. S6. The (a) hardness and (b) elastic modulus for Hf1-xTaxN films with different x.
