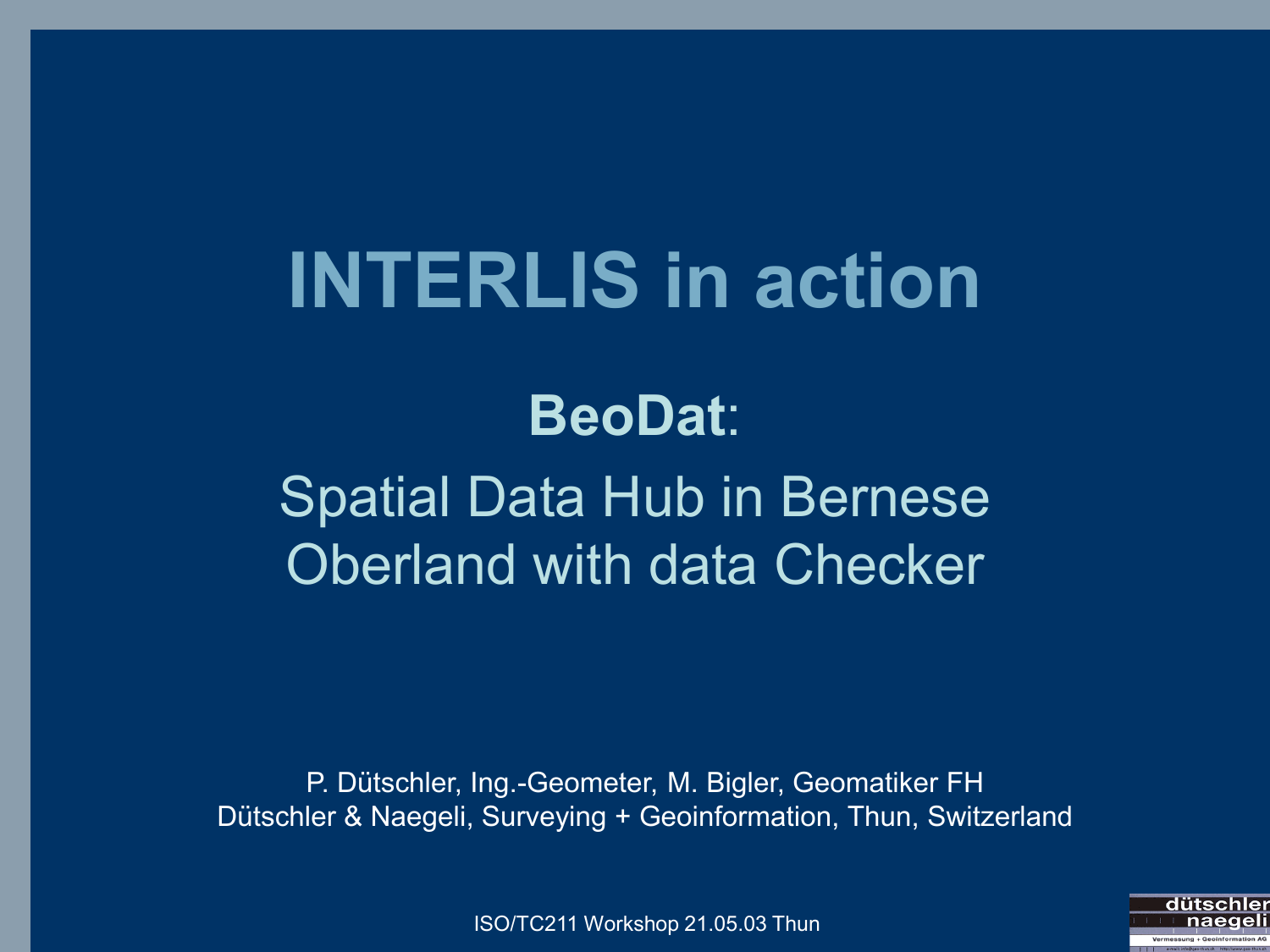

INTERLIS in action
BeoDat:
Spatial Data Hub in Bernese
Oberland with data Checker
P. Dütschler, Ing.-Geometer, M. Bigler, Geomatiker FH
Dütschler & Naegeli, Surveying + Geoinformation, Thun, Switzerland
ISO/TC211 Workshop 21.05.03 Thun
Agenda
•
•
•
•
•
•
BeoDat background
System architecture
Data flow
Check service
Demo
Conclusion
ISO/TC211 Workshop 21.05.03 Thun
BeoDat background
•
•
•
•
•
•
•
•
7 independent surveying offices
4 different software systems C-Plan, Adalin, Intergraph, ESRI
~100 communities
~180‘000 inhabitants
1 geo-language INTERLIS
Budget SFR 100‘000.Show technical functionality
Take the lead in geo-competence
ISO/TC211 Workshop 21.05.03 Thun
System architecture
• Concept allows cascading
– Switzerland
• Canton Berne
– Regional BeoDat
• Model driven approach
– Emanzipation from SW
•
•
•
•
Data capture at the source
Standard technologies
Automatic transactions
Cascading by increasing load
ISO/TC211 Workshop 21.05.03 Thun
ISO/TC211 Workshop 21.05.03 Thun
Data Flow
ISO/TC211 Workshop 21.05.03 Thun
Check Service
ISO/TC211 Workshop 21.05.03 Thun
Check Service
• Online check by operator with FTP
ISO/TC211 Workshop 21.05.03 Thun
Check Service
• Central Service, run by the canton of
Berne (Cantonal Surveying Office)
• For free
• Checks about 2‘000 different error-types
• Checks with different Databases (Tridat)
• Takes 5 Minutes from the start to the result
• Result by email (Download-link)
• Error and Plot included
ISO/TC211 Workshop 21.05.03 Thun
Error statistics
ISO/TC211 Workshop 21.05.03 Thun
Demo
ISO/TC211 Workshop 21.05.03 Thun
Geoshop functionalities
• personal Login (if enabled)
• user and view management
• Data upload (FTP)
• INTERLIS, DWG, SHP, etc.
• Semantic Transfer
• Data test
• internal Data Viewer
catalog search
• Queries, Selections, Plot
• Export, Delivery, Shop
• automatic batch processes
• scalable
ISO/TC211 Workshop 21.05.03 Thun
Geoshop
ISO/TC211 Workshop 21.05.03 Thun
ISO/TC211 Workshop 21.05.03 Thun
ISO/TC211 Workshop 21.05.03 Thun
ISO/TC211 Workshop 21.05.03 Thun
yesterday
Data exchange today
between Producers and Consumers of Geodata
Surveyor
Floppy/Band
PLA
Dep X
Utility
Office Y
etc.
GEO405-DXF, INTERLIS, etc.
ISO/TC211 Workshop 21.05.03 Thun
Dataexchange with INTERLIS
Producers
Consumers
Surveyor
Complete View
on integrated
Data Possible
PLA
Datapool
Water/Gas
etc.
Dep X
Office N
INTERLIS
INTERLIS, DXF, etc.
ISO/TC211 Workshop 21.05.03 Thun
BeoDat Datendrehscheibe Ortsinformationssystem
BeoDat
ISO/TC211 Workshop 21.05.03 Thun
FLOTRON AG 2003
Conclusion 1/2
• Why is it intersting for a private office to work
with INTERLIS
–
–
–
–
–
Developpements overdure SW-Versions
Freedom in choose of SW
Data integrity
Stability for investment/cost effectifness
Higher service level towards customers/better
Products
ISO/TC211 Workshop 21.05.03 Thun
Conclusions 2/2
HW HW HW H
HW HW HW HW HW HW HW HW HW HW HW HW
HW HW HW
HW HW HW HW HW HW HW HW HW HW HW HW
SW
SW
SW
SW
SW
SW
INTERLIS V1
SW
SW
SW
SW
INTERLIS Vx
Data
ISO/TC211 Workshop 21.05.03 Thun
SW
SW
