TECHNICAL DATA: Grab type : RBOX Width : 55 cm 80 cm 100 cm

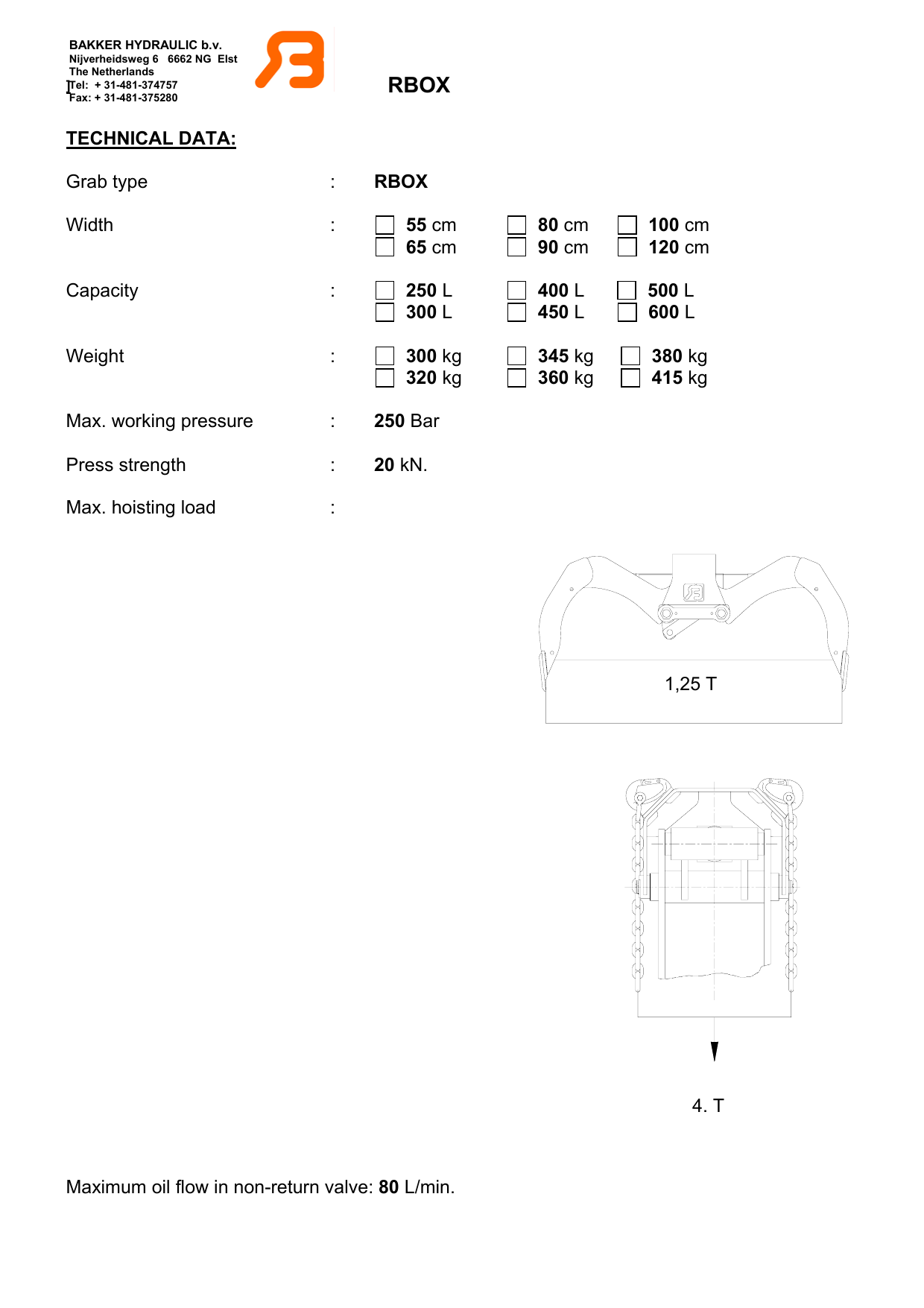

BAKKER HYDRAULIC b.v. Nijverheidsweg 6 6662 NG Elst The Netherlands ]Tel: + 31-481-374757 Fax: + 31-481-375280 RBOX TECHNICAL DATA: Grab type : RBOX Width : 55 cm 65 cm 80 cm 90 cm 100 cm 120 cm Capacity : 250 L 300 L 400 L 450 L 500 L 600 L Weight : 300 kg 320 kg 345 kg 360 kg 380 kg 415 kg Max. working pressure : 250 Bar Press strength : 20 kN. Max. hoisting load : 1,25 T 4. T Maximum oil flow in non-return valve: 80 L/min. BAKKER HYDRAULIC b.v. RBOX 55-65-80 Nijverheidsweg 6 6662 NG Elst The Netherlands Tel: + 31-481-374757 Fax: + 31-481-375280 7022 SPARE PARTS 9202 9013 9011 9018 9010 9012 9203 9206 9205 9204 9017 9200 7003 7006 7025 7004 7023 7028 7010 7007 9003 7011 PART NO RBOX-7003 RBOX-7004 RBOX-7006 RBOX-7007 RBOX-7010 RBOX-7011 RBOX-7022 RBOX-7023 RBOX-7025 RBOX-7028 RBOX-9003 RBOX-9010 RBOX-9011 RBOX-9012 RBOX-9013 RBOX-9017 RBOX-9018 RBOX-9024 RBOX-9025 RBOX-9200 RBOX-9202 RBOX-9203 RBOX-9204 RBOX-9205 RBOX-9206 QUANTITY SPECIFICATION 1 STEADY LINK 2 PIN 2 YOKE 4 PIN 2 SPLIT BUSH 4 SPLIT BUSH 1 NUT 1 NUT 1 CYLINDER ROLL PIN 2 4 SPLIT BUSH 1 SUSPENSION PLATE 1 SUSPENSION PIN 4 BOLT 4 NUT 2 CIRCLIP 1 HAIRPIN SPRING 2 BLADE see chart BOLT 2 NON RETURN VALVE 1 SADDLE PLATE 1 LOCKING SPANNER 2 SHAFT 2 NUT 8 BOLT 9025 9024 GRAB TYPE Nummer of bolts RBOX 9025 RBOX RBOX RBOX 55 65 80 8 10 10 BAKKER HYDRAULIC b.v. Nijverheidsweg 6 6662 NG Elst The Netherlands Tel: + 31-481-374757 Fax: + 31-481-375280 RBOX 90-100-120 SPARE PARTS 9200 7043 9013 9010 9018 9011 9012 9203 9206 9205 7023 7044 7025 7007 9017 7006 7003 7022 7004 7028 7011 7010 9003 9024 9025 PART NO RBOX-7003 RBOX-7004 RBOX-7006 RBOX-7007 RBOX-7010 RBOX-7011 RBOX-7022 RBOX-7023 RBOX-7025 RBOX-7028 RBOX-7043 RBOX-7044 RBOX-9003 RBOX-9010 RBOX-9011 RBOX-9012 RBOX-9013 RBOX-9017 RBOX-9018 RBOX-9024 RBOX-9025 RBOX-9200 RBOX-9203 RBOX-9205 RBOX-9206 QUANTITY 2 4 2 4 4 4 1 1 1 2 1 2 4 1 1 4 4 4 1 2 see chart 2 1 2 8 GRAB TYPE Nummer of bolts RBOX 9025 SPECIFICATION STEADY LINK PIN YOKE PIN SPLIT BUSH SPLIT BUSH NUT NUT CYLINDER ROLL PIN SADDLE PLATE SHAFT SPLIT BUSH SUSPENSION PLATE SUSPENSION PIN BOLT NUT CIRCLIP HAIRPIN SPRING BLADE BOLT NON RETURN VALVE LOCKING SPANNER NUT BOLT RBOX RBOX RBOX 90 100 120 10 14 14
