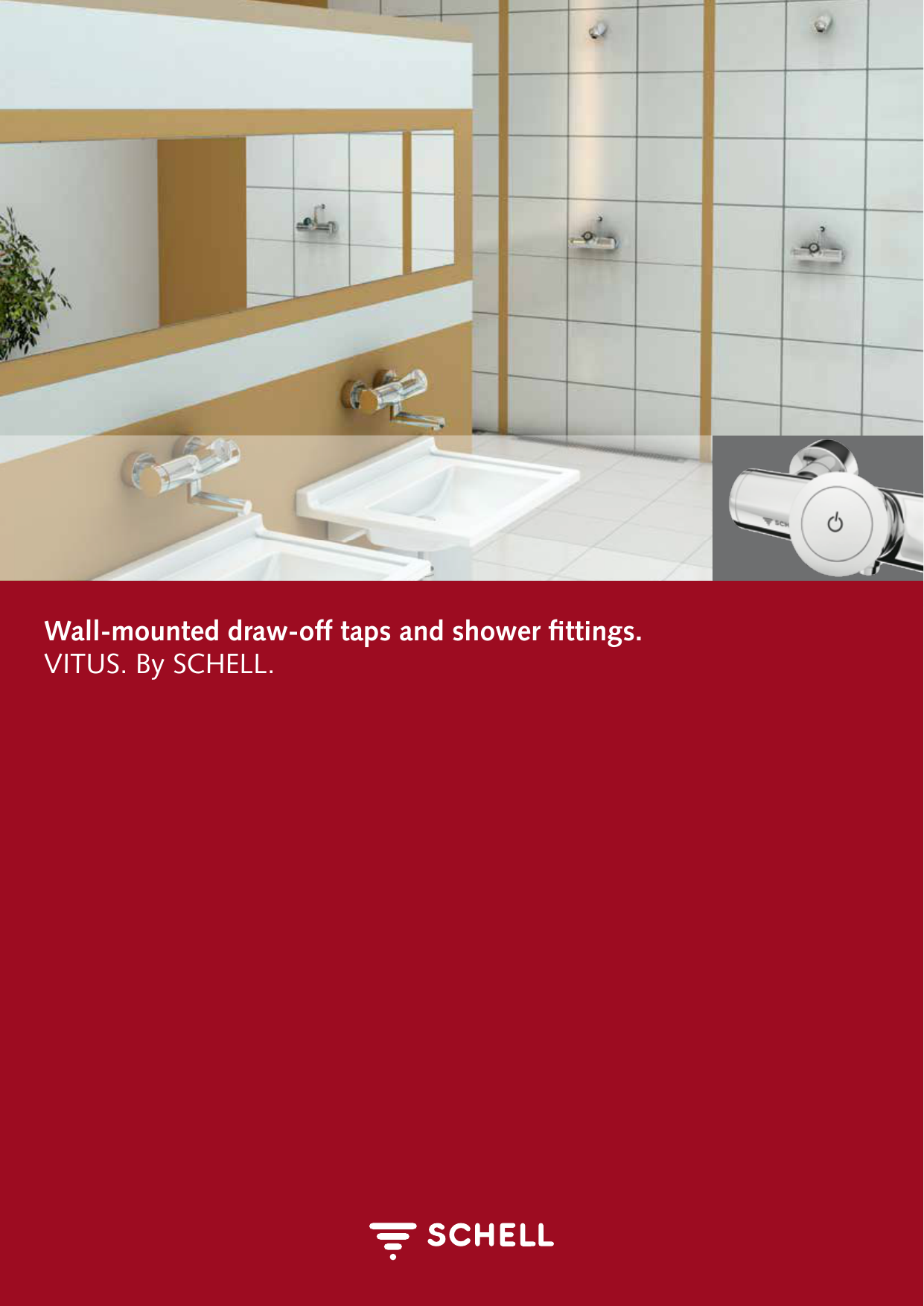

Wall-mounted draw-off taps and shower fittings. VITUS. By SCHELL.

Wall-mounted draw-off taps and shower fittings. VITUS. By SCHELL.

Wall-mounted draw-off taps and shower fittings.
VITUS. By SCHELL.
Can a wall-mounted draw-off tap
also be a shower fitting?
VITUS makes it possible. Discover the innovative, modular fittings concept
of VITUS, which is without equal. Developed for usage in public, semipublic and commercial sanitary rooms. From the specialists among fittings
manufacturers: SCHELL.
2
3
There is simply more to VITUS.
100 designs in one fitting.
With its product series VITUS, SCHELL has developed a completely new fittings concept. And not just that: VITUS
extends the SCHELL product range by a wall-mounted series for wash basin and shower. The unique thing: Based
on only two basic housings, VITUS offers you the possibility of choosing from among a multitude of designs, the
one which suits your requirements best. Whether, for example, it is used as a wall-mounted draw-off tap or shower
fitting, whether for mixed water or thermostat, whether manual, self-closing or electronic actuation. There are
hardly any limits to your wishes.
We have placed special importance on user and drinking water hygiene. The quality of alloys used exclusively by
SCHELL ensures adherence to the limit values laid down by the “Drinking Water Directive of 2001” (DIN 50930-6)
which was revised in 2011. Drinking water protection is guaranteed by DIN 1988-100 (“Codes of practice for
drinking water installations”) and EN 1717.
Besides a stagnation flush, the individual designs also optionally offer a mechanically activated thermal disinfection.
Other quality criteria speak for VITUS, which received the Plus X Award: robust all-metal design, noise class I and a
manufacturing system according to DIN ISO 9001.
Ideal prerequisites for the use in:
• Nurseries / schools / universities
• Hospitals / nursing homes
• Airports / railway stations / motorway service stations
• Leisure facilities / sports facilities / swimming pools
• Industrial businesses
• Commercial businesses
4
5
A clean deal.
The hygiene plus from VITUS.
In sanitary rooms cleanliness is of paramount importance.
Particularly, if they are used publicly and the focus is on
drinking water hygiene. Here VITUS can score points.
6
Maximum user hygiene. VITUS provides you with a number of solutions for
maximum user hygiene. These include the operation by means of an arm
lever, which has proved its worth in the day-to-day business of hospitals.
Additional advantages in terms of hygiene: the easy-to-clean, smooth
chrome surfaces, the lockable S connections beneath the rosette, as well as
retaining nuts which are covered by the rosette.
Thermal disinfection. Legionella bacteria are an important issue, especially in
shower areas of public sanitary rooms. VITUS has the right solution for this,
too: the thermal disinfection. This make it possible to meet the requirements
of the DVGW worksheet W 551 for a thermal disinfection with 70 ° C warm
water for 3 minutes. The drinking water heater and the whole warm water
system, including the outlet valves, can thus be rinsed at more than 70 °C for
at least 3 minutes. For this, SCHELL also provides VITUS fittings with a preassembled valve for thermal disinfection. If required, it also can be retrofitted
at any time.
Proper use thanks to stagnation flush. To provide hygienic, faultless drinking
water, an extended water flow stagnation must be avoided in the pipes. If
a regular use cannot be guaranteed, a stagnation flush can be activated by
means of the new CVD button. The CVD touch electronics are a particularly
robust, touch-sensitive control unit, developed especially for the special
requirements in public, semi-public and commercial sanitary rooms. The
CVD button opens up new possibilities for an even more efficient and safer
stagnation flush. Because now, stagnation intervals and flush times can be
comfortably, individually and clearly adjusted via PC. Furthermore, there are
extensive diagnostic functions available.
Clearly structured and intuitive:
the software interface. Every adjustment can be carried out comfortably.
Would you like further information?
At www.schell.eu you can receive the
“CVD button” brochure. As a download
from SCHELL.
8
Everything possible.
The operating plus from VITUS.
As different as public sanitary rooms are, as individual are the requirements for
the corresponding operating concept. VITUS satisfies every desire of developers
and users.
5 activation options
Whether manual or self-closing operation – VITUS impresses with its wide range
of possibilities for actuating the water flow of wall-mounted draw-off taps or
showers. Choose between single-lever mixers, 90°-cartridge, hydraulic selfclosing cartridge or CVD button. They are all easy to operate and use symbols
which are easily understood.
Design: Single-lever
Design: Single-arm lever
Design: Self-closing
Design: CVD button
Design: 90°-Cartridge
3 wall-mounted tap lengths
Wherever VITUS is used as a wall-mounted tap – you can choose between
3 separate extensions: 190, 250 or 310 mm. The taps are available as swivelor fixed taps.
2 options to set the temperature
With VITUS the water temperature is adjusted either via mixing lever or
via thermostat. The thermostat mixer has a scald protection ex works.
In addition, a temperature limit can be set on all single-lever designs.
9
Less is more.
Efficiency plus safety from VITUS.
Due to limited natural resources, nowadays it is more important than ever to
ensure sustainable solutions. And this especially in areas where, as experience
has shown, the awareness for this topic is the lowest: in public, semi-public
and commercial sanitary rooms.
Water-saving functions. VITUS impresses with many possibilities of reducing
water consumption. These include for example spray regulators with pressureindependent flow regulators. The adjustable flow time limit for self-closing
designs, as well as the user specific flow time, also ensure no­­­­tice­­­­­­­­­­­­­­­­­able savings.
Low energy costs and scold protection. The provision of 1 m³ of hot water
requires approx. 95 kWh of energy and is thus approx. 80-times higher than
the consumption of 1 m³ of cold water. Therefore: only as much warm water
as needed should be used. For this reason the warm water temperature can
be limited for VITUS, either by a temperature stop or by locking the adjustment
range – and thus energy is saved lastingly. The enclosed temperature limiter
ring prevents scalding on thermostat fittings.
10
11
Product overview.
VITUS wall-mounted draw-off taps.
VITUS wall-mounted draw-off tap
Mixed water
Thermostat
Design
VW-EH-M
VW-SC-M
VW-On/Off-T
VW-SC-T
VW-C-T
Function
Single-lever
On/Off
Self-closing
On/Time limit
Rotary knob
On/Off
Self-closing
On/Time limit
CVD button
On/Off/Time limit
Battery operation
Without thermal disinfection
Extension
135 mm long
01 623 06 99
01 621 06 99
01 622 06 99
01 620 06 99
01 624 06 99
Extension
195 mm long
01 633 06 99
01 631 06 99
01 632 06 99
01 630 06 99
01 634 06 99
Extension
255 mm long
01 643 06 99
01 641 06 99
01 642 06 99
01 640 06 99
01 644 06 99
With manual thermal disinfection
Extension
135 mm long
01 653 06 99*
01 651 06 99*
01 652 06 99*
01 650 06 99*
01 654 06 99*
Extension
195 mm long
01 661 06 99*
01 659 06 99*
01 660 06 99*
01 658 06 99*
01 662 06 99*
Extension
255 mm long
01 693 06 99*
01 691 06 99*
01 692 06 99*
01 690 06 99*
01 694 06 99*
With electronic thermal disinfection
Extension
135 mm long
01 669 06 99** 01 667 06 99** 01 668 06 99** 01 666 06 99**
01 670 06 99**
Extension
195 mm long
01 677 06 99** 01 675 06 99** 01 676 06 99** 01 674 06 99**
01 678 06 99**
Extension
255 mm long
01 685 06 99** 01 683 06 99** 01 684 06 99** 01 682 06 99**
01 686 06 99**
12
Clinic
Mixed water
Design
Function
Thermostat
VW-AH-M Linear
VW-On/Off-T AH
Arm lever
On-Cold-Warm
Arm lever
On/Off
Without thermal disinfection
Extension
135 mm long
01 626 06 99
01 627 06 99
Extension
195 mm long
01 636 06 99
01 637 06 99
Extension
255 mm long
01 646 06 99
01 647 06 99
With manual thermal disinfection
Extension
135 mm long
01 656 06 99*
01 657 06 99*
Extension
195 mm long
01 664 06 99*
01 665 06 99*
Extension
255 mm long
01 696 06 99*
01 697 06 99*
With electronic thermal disinfection
Extension
135 mm long
01 672 06 99**
01 673 06 99**
Extension
195 mm long
01 680 06 99**
01 681 06 99**
Extension
255 mm long
01 688 06 99**
01 689 06 99**
*Delivery on request
**Delivery at a later date
13
Product overview.
VITUS shower fittings.
VITUS wall-mounted shower
Connected to the top
Mixed water
Thermostat
VD-EH-M
VD-SC-M
VD-On/Off-T
VD-SC-T
VD-C-T
Single-lever
On/Off
Self-closing
On/Time limit
Rotary knob
On/Off
Self-closing
On/Time limit
CVD button
On/Off/Time limit
Battery operation
Without thermal
disinfection
01 603 06 99
01 601 06 99
01 602 06 99
01 600 06 99
01 604 06 99
Thermal disinfection
manual
01 608 06 99*
01 606 06 99*
01 607 06 99*
01 605 06 99*
01 609 06 99*
Thermal disinfection
electronic
01 701 06 99** 01 699 06 99** 01 700 06 99** 01 698 06 99**
01 702 06 99**
Design
Function
14
Connected to the bottom
Mixed water
Thermostat
VD-EH-M
VD-SC-M
VD-On/Off-T
VD-SC-T
VD-C-T
Single-lever
Self-closing
On/Time limit
Rotary knob
On/Off
Self-closing
On/Time limit
CVD button
On/Off/Time limit
Battery operation
Without thermal
disinfection
01 613 06 99
01 611 06 99
01 612 06 99
01 610 06 99
01 614 06 99
Thermal disinfection
manual
01 618 06 99*
01 616 06 99*
01 617 06 99*
01 615 06 99*
01 619 06 99*
Thermal disinfection
electronic
01 706 06 99** 01 704 06 99** 01 705 06 99** 01 703 06 99**
01 707 06 99**
Design
Function
*Delivery on request
**Delivery at a later date
15
