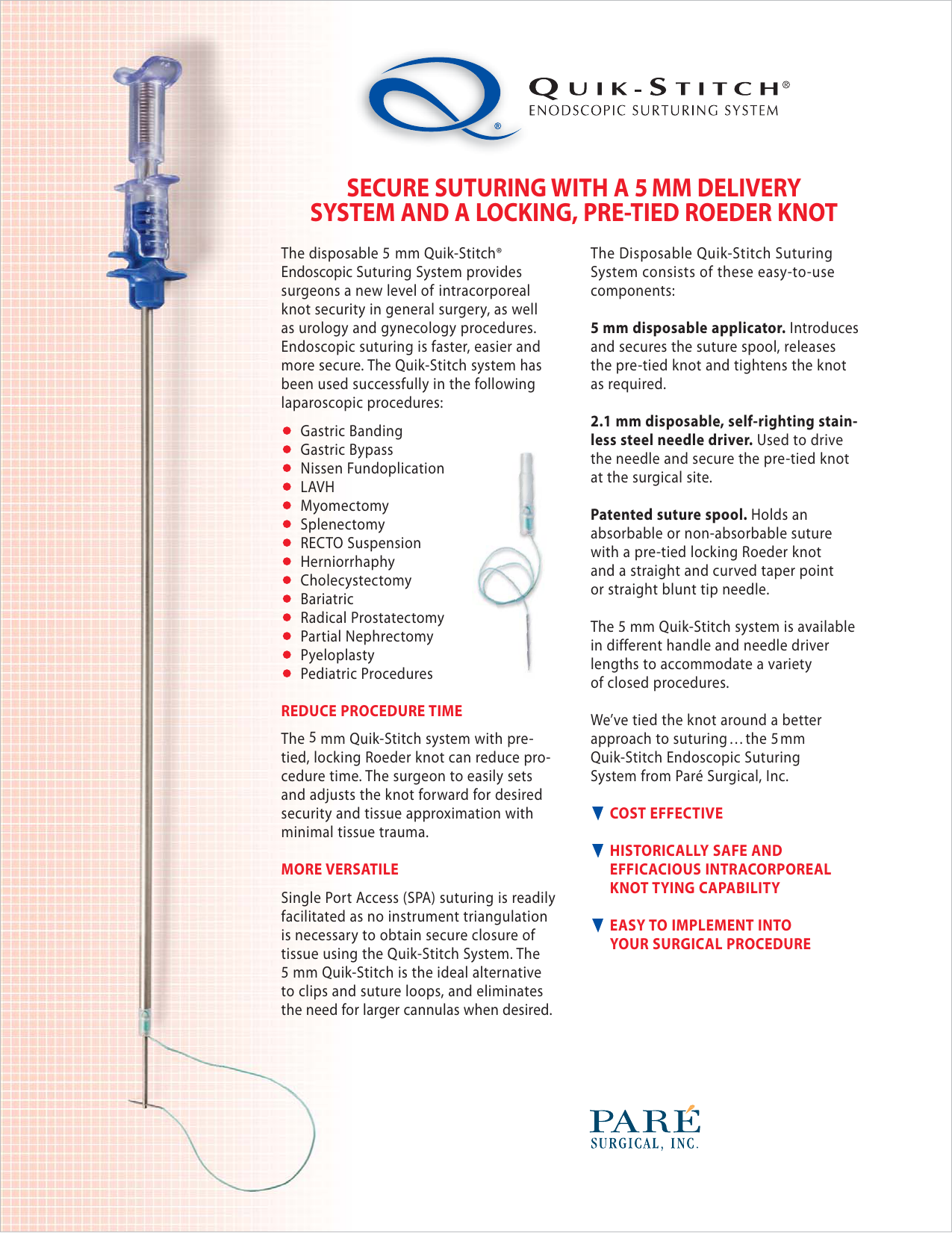

QuikStitch 5mm-03.24.09

SECURE SUTURING WITH A 5 MM DELIVERY
SYSTEM AND A LOCKING, PRE-TIED ROEDER KNOT
The disposable 5 mm Quik-Stitch®
Endoscopic Suturing System provides
surgeons a new level of intracorporeal
knot security in general surgery, as well
as urology and gynecology procedures.
Endoscopic suturing is faster, easier and
more secure. The Quik-Stitch system has
been used successfully in the following
laparoscopic procedures:
Gastric Banding
Gastric Bypass
Nissen Fundoplication
LAVH
Myomectomy
Splenectomy
RECTO Suspension
Herniorrhaphy
Cholecystectomy
Bariatric
Radical Prostatectomy
Partial Nephrectomy
Pyeloplasty
Pediatric Procedures
REDUCE PROCEDURE TIME
The 5 mm Quik-Stitch system with pretied, locking Roeder knot can reduce procedure time. The surgeon to easily sets
and adjusts the knot forward for desired
security and tissue approximation with
minimal tissue trauma.
MORE VERSATILE
Single Port Access (SPA) suturing is readily
facilitated as no instrument triangulation
is necessary to obtain secure closure of
tissue using the Quik-Stitch System. The
5 mm Quik-Stitch is the ideal alternative
to clips and suture loops, and eliminates
the need for larger cannulas when desired.
The Disposable Quik-Stitch Suturing
System consists of these easy-to-use
components:
5 mm disposable applicator. Introduces
and secures the suture spool, releases
the pre-tied knot and tightens the knot
as required.
2.1 mm disposable, self-righting stainless steel needle driver. Used to drive
the needle and secure the pre-tied knot
at the surgical site.
Patented suture spool. Holds an
absorbable or non-absorbable suture
with a pre-tied locking Roeder knot
and a straight and curved taper point
or straight blunt tip needle.
The 5 mm Quik-Stitch system is available
in different handle and needle driver
lengths to accommodate a variety
of closed procedures.
We’ve tied the knot around a better
approach to suturing … the 5 mm
Quik-Stitch Endoscopic Suturing
System from Paré Surgical, Inc.
COST EFFECTIVE
HISTORICALLY SAFE AND
EFFICACIOUS INTRACORPOREAL
KNOT TYING CAPABILITY
EASY TO IMPLEMENT INTO
YOUR SURGICAL PROCEDURE
The Quik-Stitch® Endoscopic Suturing System consists
of the Quik-Stitch Applicator, Needle Driver and Suture
Spool with pre-tied knot.
5 mm Suture Spool – Polyester Coated Non-Absorbable
PRODUCT CODE
SIZE
WORKING SUTURE LENGTH
SHAPE
NEEDLE SIZE AND TYPE
2-0
0-0
0-0
2-0
3-0
2-0
7 inch/18 cm
7 inch/18 cm
7 inch/18 cm
7 inch/18 cm
7 inch/18 cm
7 inch/18 cm
Straight
Straight
Straight
Straight
Straight
Curved
11 mm Taper Point
12 mm Blunt Tip
19 mm Taper Point
19 mm Taper Point
19 mm Taper Point
(DR) 17 mm Taper Point
0520117-1
0500127-1
0500197-1
0520197-1
0530197-1
0520177-1
Quik-Stitch
Applicator
5 mm Suture Spool – Silk
PRODUCT CODE
SIZE
WORKING SUTURE LENGTH
SHAPE
NEEDLE SIZE AND TYPE
2-0
7 inch/18 cm
Straight
19 mm Taper Point
0520197-3
Quik-Stitch
Needle Driver
5 mm Suture Spool – Synthetic Coated Absorbable
PRODUCT CODE
SIZE
WORKING SUTURE LENGTH
SHAPE
NEEDLE SIZE AND TYPE
2-0
2-0
0-0
2-0
3-0
0-0
3-0
2-0
7 inch/18 cm
7 inch/18 cm
7 inch/18 cm
7 inch/18 cm
7 inch/18 cm
7 inch/18 cm
7 inch/18 cm
7 inch/18 cm
Straight
Straight
Straight
Straight
Straight
Curved
Curved
Curved
11 mm Taper Point
12 mm Blunt Tip
19 mm Taper Point
19 mm Taper Point
19 mm Taper Point
(DR) 17 mm Taper Point
(DR) 17 mm Taper Point
(HR) 26 mm Taper Point
0520117-2
0520127-2
0500197-2
0520197-2
0530197-2
0500177-2
0530177-2
0520267-2
5 mm Stitch Handle – Disposable Suturing System
PRODUCT CODE
DESCRIPTION
DQS-520
DQS-530
DQS-539
SIZE
Quik-Stitch Handle and 2.1 mm Needle Driver Set
Quik-Stitch Handle and 2.1 mm Needle Driver Set
Quik-Stitch Handle and 2.1 mm Needle Driver Set
20 cm
30 cm
39 cm
*Cross reference the (HR) needle to the (SH) needle. / Cross reference the (DR) needle to the (RB-1) needle.
Stitch Process
Single Port Access
(SPA) Surgery
Fig. 1a
Fig. 1
Fig. 2
Fig. 3
Fig. 4
The Quik-Stitch is the
ideal instrument for
easily obtaining secure
suture tissue approximation and ligation.
Locking, Pre-tied
Roeder Knot
Fig. 5
Fig. 6
Fig. 7
Fig. 8
®
PARE´ Surgical, Inc.
* Patent No. 6,221,084. Patent No. 5,741,280.
7332 S. Alton Way, Suite H, Centennial, CO 80112 USA
(303) 689-0187, (866) 700-7273, Fax: (303) 689-0579
www.paresurgical.com | [email protected]
© 2009 Paré Surgical, Inc. All Rights Reserved.
Quik-Stitch is a registered trademark and Center Port
Delivery is a trademark of Paré Surgical Inc. CTS0801
Suture
Spool
Self-Righting,
Needle Grasping Tip
