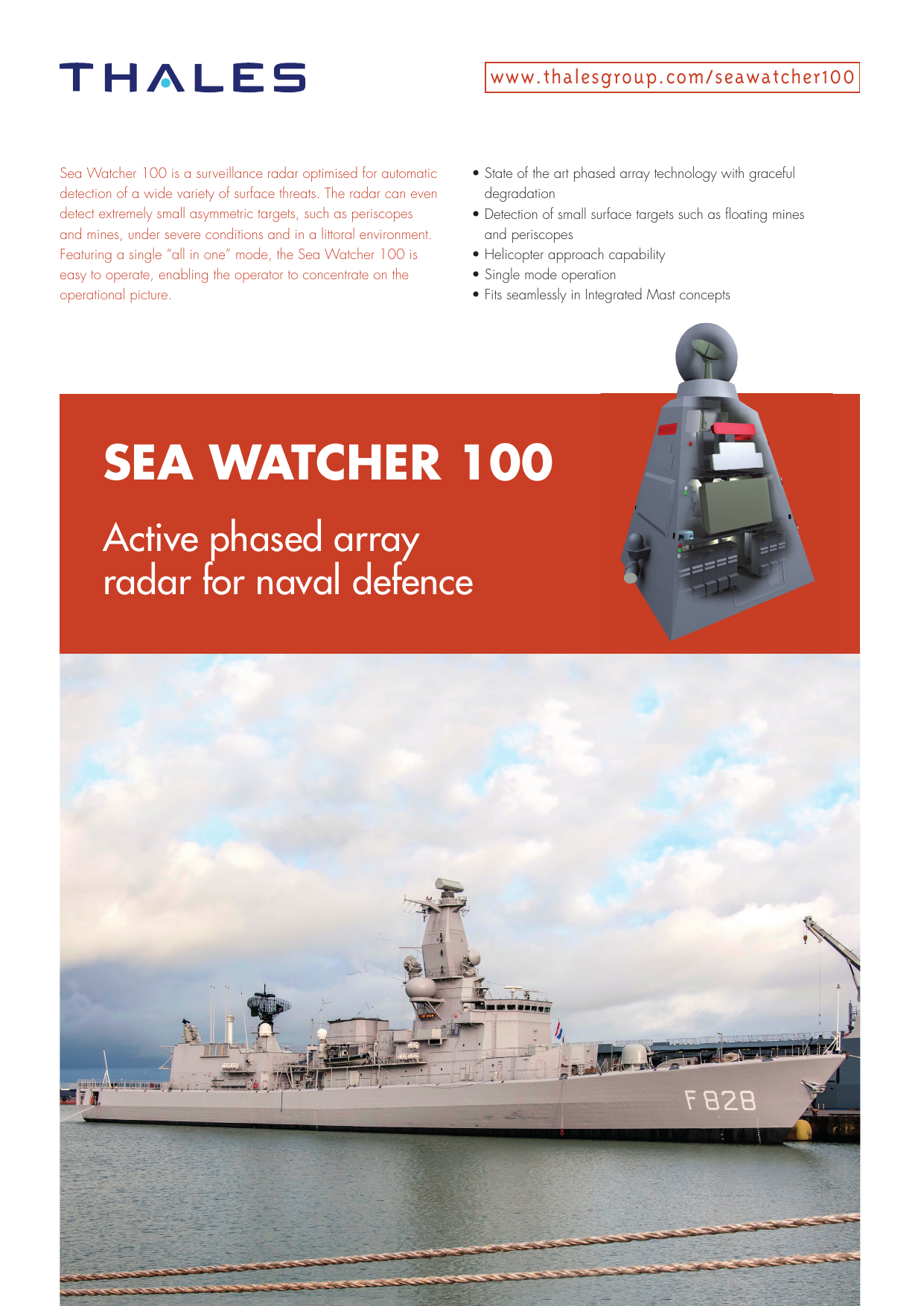

Datasheet SEA WATCHER 100

www.thalesgroup.com/seawatcher100
Sea Watcher 100 is a surveillance radar optimised for automatic
detection of a wide variety of surface threats. The radar can even
detect extremely small asymmetric targets, such as periscopes
and mines, under severe conditions and in a littoral environment.
Featuring a single “all in one” mode, the Sea Watcher 100 is
easy to operate, enabling the operator to concentrate on the
operational picture.
• State of the art phased array technology with graceful
degradation
• Detection of small surface targets such as floating mines
and periscopes
• Helicopter approach capability
• Single mode operation
• Fits seamlessly in Integrated Mast concepts
SEA WATCHER 100
Active phased array
radar for naval defence
SEA WATCHER 100
Active phased array radar for naval defence
• X-band (I/J) active phased array radar for all weather
surface surveillance in a four-face configuration.
• 360 degrees unblocked surface coverage
• An exceptionally high degree of automation allowing
the operator to focus on the operational picture
• Designed for operation in highly cluttered littoral
environments.
• Dedicated detection and tracking algorithms for small
asymmetric threats such as mines and periscopes.
• High MTBCF through extensive use of graceful
degradation.
Functional aspects
• Surface surveillance
• Asymmetric surface target detection
• Helicopter guidance support
Technical Data
•
•
•
•
Operation in X-band (I/J)
Range 80 m - 40 km
Range cell size down to 7.5m
Update rate down to1 sec
4x Antenna
4x Man
Aloft Switch
Front End Processing
Cabinet (FPC)
Radar Cabinet (RAC)
Installation and maintenance
Sea Watcher 100 is easily installed while integrated
in the deckhouse and is ideally suited for installation
in an integrated mast structure. It has been designed
for easy accessibility to bemaintained from within the
mast or deckhouse thus reducing the MTTR and limiting
the exposure of crew members tooutside hazards.
Interface to RSCP, SFI
Interface to Ships NAVS system
Interface to CS data/digital video
The solid state active phased array architecture offers a
graceful degradation and a very high MTBCF. Integrated
Built-In Test is used for performance reporting, fault reporting
and fault isolation.
Thales Nederland B.V.
P.O. Box 42 7550 GD
HENGELO THE NETHERLANDS
Phone
E-mail
: +31 74 248 81 11
: [email protected]
Maintainer
Terminal
To/from SEA MASTER
To ESM system
THALES NEDERLAND B.V. and/or its suppliers. This information carrier contains proprietary information which shall not be used, reproduced or disclosed to third parties
without prior writte authorization by THALES NEDERLAND B.V. and/or its suppliers, as applicable. Data on this sheet may be subject to change without notification.
Main features
